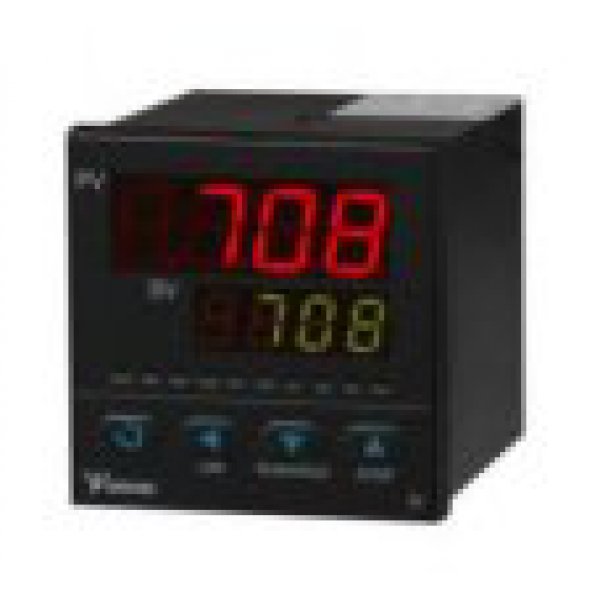

Yudian AI-708H Flow Totalizer
- Modularized structure luxury replica watches and hardware compatible with other AI series instruments and modules, which make it easy to maintain and quick delivered
- Modularized and configurable inputs, the flow input can be 1-5V, 0-5V, 4-20mA or frequency signal, and special user defined input specification is also available. The temperature input can be configured to Pt100 RTD, K, E, J type thermocouple, voltage, or current signal. The pressure input can be various voltage or current signal.
- Abundant functions such as retransmission, high/low alarm of momentary flow, temperature Chopard Replica Watches and pressure, abnormal signal detecting, and communication with computer are available.
- Square root/no square root selectable, 8-digits accumulation value and 4-digits momentary process value, small signal cut-out can be set at any range.
- Modularized structure luxury replica watches and hardware compatible with other AI series instruments and modules, which make it easy to maintain and quick delivered
- Modularized and configurable inputs, the flow input can be 1-5V, 0-5V, 4-20mA or frequency signal, and special user defined input specification is also available. The temperature input can be configured to Pt100 RTD, K, E, J type thermocouple, voltage, or current signal. The pressure input can be various voltage or current signal.
- Abundant functions such as retransmission, high/low alarm of momentary flow, temperature Chopard Replica Watches and pressure, abnormal signal detecting, and communication with computer are available.
- Square root/no square root selectable, 8-digits accumulation value and 4-digits momentary process value, small signal cut-out can be set at any range.
- Flow Input : Linear Voltage (0-5V DC OR 1-5V DC, Linear Current (4-20mA), Two Wire Transmitter Input
- Temperature Input : RTD PT-100 OR Thermocouple (K,E,J) – For Temperature Compensation (Compensation possible with AI-808H)
- Pressure Input : 0-5V DC OR 1-5V DC, 4-20mA – For Pressure Compensation (Compensation possible with AI-808H)
- Display : Flow Rate, Accumulated or Total Flow, Pressure & Temperature
- Output for Batch Control : Relay
- Alarm : High & Low Alarms for Flow, Temperature & Pressure
- Communication : RS-485 (Plug-in Module)
- ReTransmission O/P : Linear current or voltage (SV OR PV)
- Power Supply : SMPS 100~240VAC/DC‚ 50 Hz OR 24 V DC
- Panel Cutout Size : 96×96mm, 72×72mm, 48×48mm, 48×96mm, 96×48mm, E5 Din Rail mounting, A6 LCD Display
- spacing : 0pt'>Modularized and configurable inputs, the flow input can be 1-5V, 0-5V, 4-20mA or frequency signal, and special user defined input specification is also available. The temperature input can be configured to Pt100 RTD, K, E, J type thermocouple, voltage, or current signal. The pressure input can be various voltage or current signal.
- Abundant functions such as retransmission, high/low alarm of momentary flow, temperature Chopard Replica Watches and pressure, abnormal signal detecting, and communication with computer are available.
- Square root/no square root selectable, 8-digits accumulation value and 4-digits momentary process value, small signal cut-out can be set at any range.
