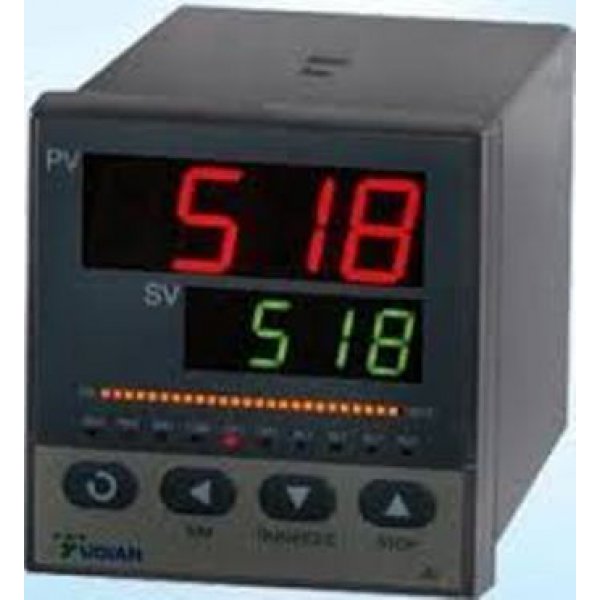

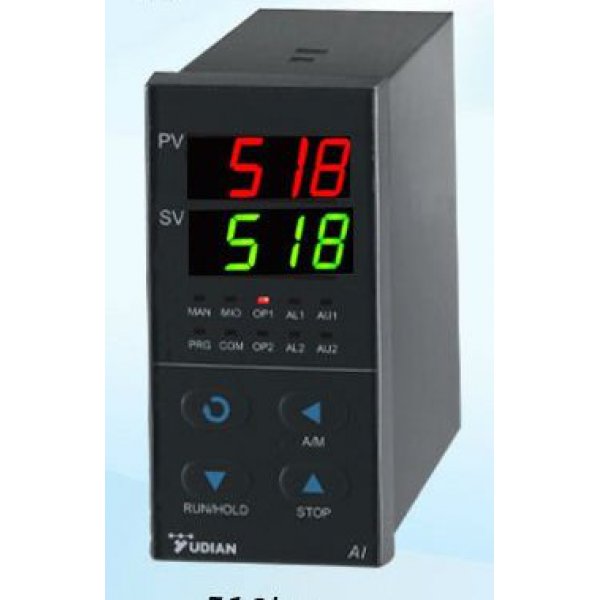

Yudian AI-518P
PROGRAMMABLE PID CONTROLLER
- Economical, wide application, precise control
- High accuracy: 0.25% FS ±0.1°C
- APID, AMPT, PID, ON-OFF selectable with auto-tuning
- Dual 4-digit display of process & set point
- LED bar graph selectable for display
- Universal inputs: Thermocouple, RTDs,
- Linear currect /voltage swiss replica watches
- Wide variety of alarm modes selectable
- Fit worldwide power supplies
- CE,UL, RoHS,ISO9001 approved/certificated
PROGRAMMABLE PID CONTROLLER
- Economical, wide application, precise control
- High accuracy: 0.25% FS ±0.1°C
- APID, AMPT, PID, ON-OFF selectable with auto-tuning
- Dual 4-digit display of process & set point
- LED bar graph selectable for display
- Universal inputs: Thermocouple, RTDs,
- Linear currect /voltage swiss replica watches
- Wide variety of alarm modes selectable
- Fit worldwide power supplies
- CE,UL, RoHS,ISO9001 approved/certificated
|
Inputs |
:Universal [All type of thermocouple and PT100‚ Cu50 (RTD)‚ linear voltage‚ linear current‚ MV‚ 2 wire transmitter input] |
|
Output |
:Relay‚ SSR‚ Linear voltage‚ linear current‚ SCR phase shift trigger‚ servo valve control /modulating output(AI 808) (Modularized installable); soft start option (AI 808) Output range limit |
|
Control algorithm |
: AI PID / AI MPT; heating / cooling dual output with 2 sets of PID; auto tuning; auto/manual bump less transfer (AI 808) |
|
Set point |
: Set point range limit; dual set point switch; remote set point |
|
Alarm |
: High‚ low‚ high deviation and low deviation |
|
Communication |
: RS 485‚ RS 232 (Modularized Installable) |
|
Retransmission Output |
: Linear current or voltage(SV OR PV) |
|
Power supply |
: SMPS 100~240VAC/DC‚50 Hz OR 24 V DC |
|
Accuracy |
: 0.2%FS |
|
Display resolution |
: 0.001° C (Selectable) |
|
Size |
: 48 x 48 x 95 (D2 size)‚ 72 x 72 x 95 (D size), 48 X 96 X 95 (E size), 96 X 48 X 95 (F size), 96 x 96 x 100 (A size) ,E5 (DIN rail mounting), A2 (Light bar output display) |
