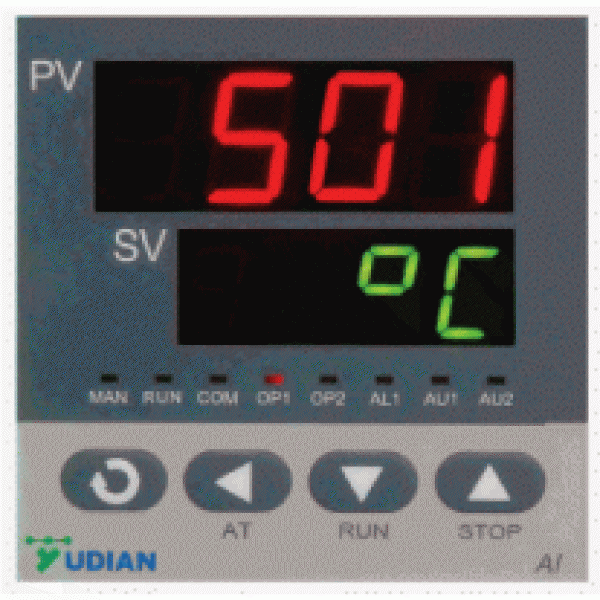

Yudian AI-501 Single Channel Indiacator
Single Channel Indicator AI-501
MAIN FEATURES:
● Programmable and modular inputs, supporting multiple input types of thermocouples, RTDs, voltage/current and two-wire transmitters.Suitable for measuring and displaying temperature, pressure, flow, level, humidity, etc with measurement accuracy of 0.3% full scale.
● Dual display windows, convenient to set parameters and alarm points. Various dimensions are selectable.
● Supports up to 4 loops of alarms including 2 loops of high limit alarms plus 2 loops of low limit alarms. Alarms can be outputted to different relays or share one.
● With functions of digital calibrating, digital filtering, and thermocouple cold junction auto compensating, it is free of maintenance and easy operated.
● Supports RS485 communication interface,able to communicate with computers.
Single Channel Indicator AI-501
MAIN FEATURES:
● Programmable and modular inputs, supporting multiple input types of thermocouples, RTDs, voltage/current and two-wire transmitters.Suitable for measuring and displaying temperature, pressure, flow, level, humidity, etc with measurement accuracy of 0.3% full scale.
● Dual display windows, convenient to set parameters and alarm points. Various dimensions are selectable.
● Supports up to 4 loops of alarms including 2 loops of high limit alarms plus 2 loops of low limit alarms. Alarms can be outputted to different relays or share one.
● With functions of digital calibrating, digital filtering, and thermocouple cold junction auto compensating, it is free of maintenance and easy operated.
● Supports RS485 communication interface,able to communicate with computers.
