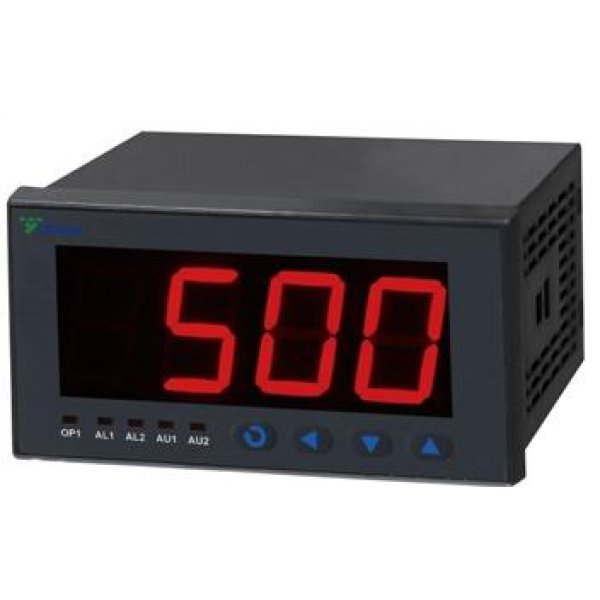

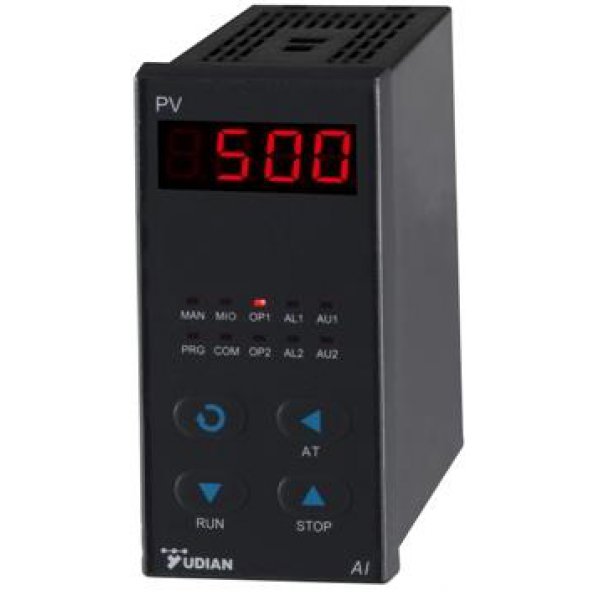

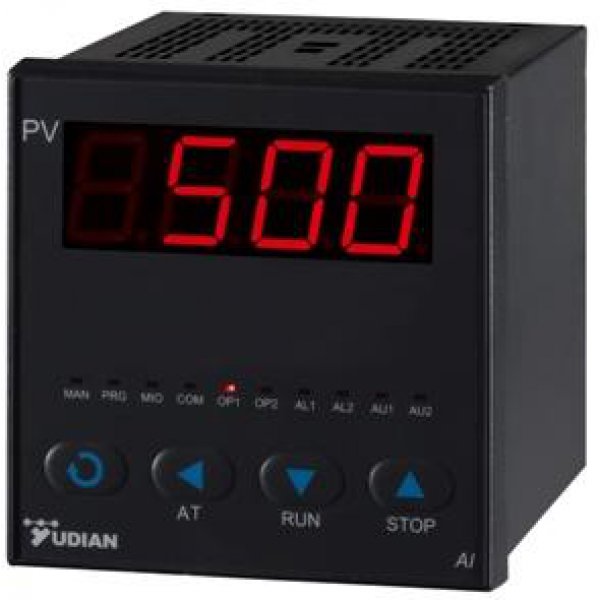

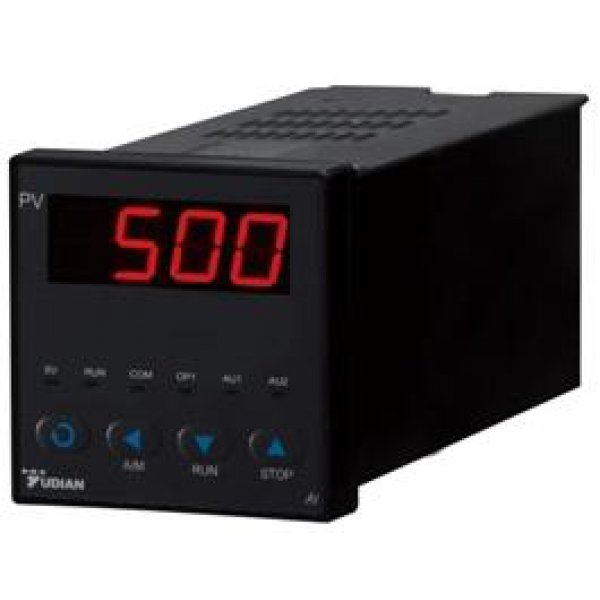

Yudian AI-500 INDICATOR / ALARMING INSTRUMENT
Intelligent Indicating/Alarming Instrument
- Programmable and modular i/p, supporting multiple input types of T/Cs, RTDs, voltage/current and two-wire transmitters. Suitable for measuring and displaying temperature, pressure,Flow,humidity.
- Supports up to 4 loops of alarms,2 loops of high limit alarms plus 2 loops of low limit alarms.
- Alarms can be outputted to Swiss Replica Watches different relays or share one.
- Supports RS485 communication interface, able to communicate with computers.
Intelligent Indicating/Alarming Instrument
- Programmable and modular i/p, supporting multiple input types of T/Cs, RTDs, voltage/current and two-wire transmitters. Suitable for measuring and displaying temperature, pressure,Flow,humidity.
- Supports up to 4 loops of alarms,2 loops of high limit alarms plus 2 loops of low limit alarms.
- Alarms can be outputted to Swiss Replica Watches different relays or share one.
- Supports RS485 communication interface, able to communicate with computers.
|
Inputs |
: Universal All type of Thermocouple and PT100‚(RTD)‚ Linear Voltage,Linear Current‚ mV‚ 2wireTransmitter input |
|
Alarm |
: High‚ Low‚ second high and second low (Selectable) |
|
Pressure Input |
: 0-5V DC OR 1-5V DC, 4-20mA Pres. (Compensation with AI- 808H) |
|
Re Transmission Output |
: Linear current or voltage |
|
Power Supply |
: SMPS 100~240VAC/DC‚ 50 Hz |
|
Accuracy |
: 0.3%FS± 1 Unit |
|
Panel Cutout Size |
: 96×96mm, 72×72mm, 48×48mm, 48×96mm, 96×48mm, E5 Din Rail Mounting |
