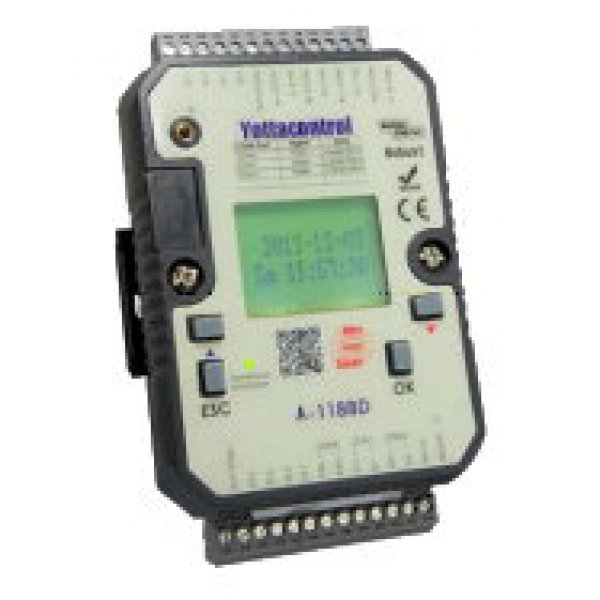

YOTTACONTROL DCS A-1189
A SERIES PLC DCS
- FBD + LD System
- Support Start-up Screen (108*64 )
- Multiple communication port
- Password protection, copy protection
- 36 integrated function, pre-tested functions
- Linking of 1024 function block is possible
- Display of message texts, cheap replica watches adjust program parameter
- Integrated data latch
- Flexibly expandable up to 10000 points
- Support full Modbus protocol
- Free PC software
A SERIES PLC DCS
- FBD + LD System
- Support Start-up Screen (108*64 )
- Multiple communication port
- Password protection, copy protection
- 36 integrated function, pre-tested functions
- Linking of 1024 function block is possible
- Display of message texts, cheap replica watches adjust program parameter
- Integrated data latch
- Flexibly expandable up to 10000 points
- Support full Modbus protocol
- Free PC software
Type |
A-1189S |
| Digital Inputs | 8 |
| Digital Output | 4 |
| Input voltage range | Digital ON: 4~30VDC OFF:2VDC(max) Analog: 0~10VDC |
| Continuous Current | Relay: 5 A for resistive load, 2 A for inductive load Transistor: NPN open collector, max. 100mA at 30 VDC |
| Incoming Power | 10~30 VDC |
| Storage Temperature | -25 to 80 °C |
| reserve power | > 10 years |
| Operation temperature | -20°C to +75 °C |
| Linking of functions | 1024(Max) |
| Real time clock | Yes/>2 years |
| Protocols | Modbus ASCII + Modbus RTU |
| Incorpo. operator interface | Yes- with Modbus interface |
| Expansion maximum I/O | More than 10000 |
| Input Operating frequency | 15000HZ(DI0~DI3)/50HZ(DI4~DI7) |
| Message text/ display | 4 lines of 12 characters |
| Communication Port | RS232*1 |
| Instruction |
|
