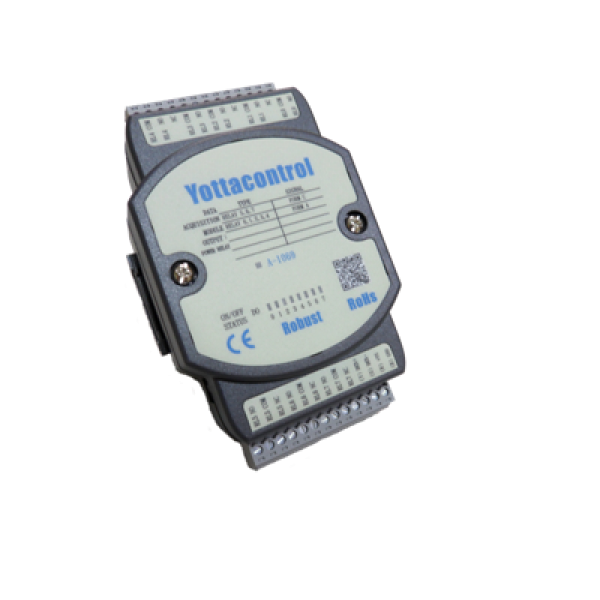

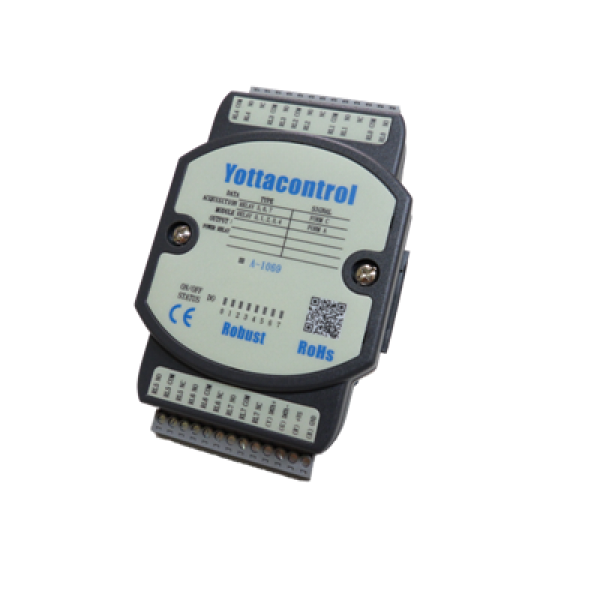

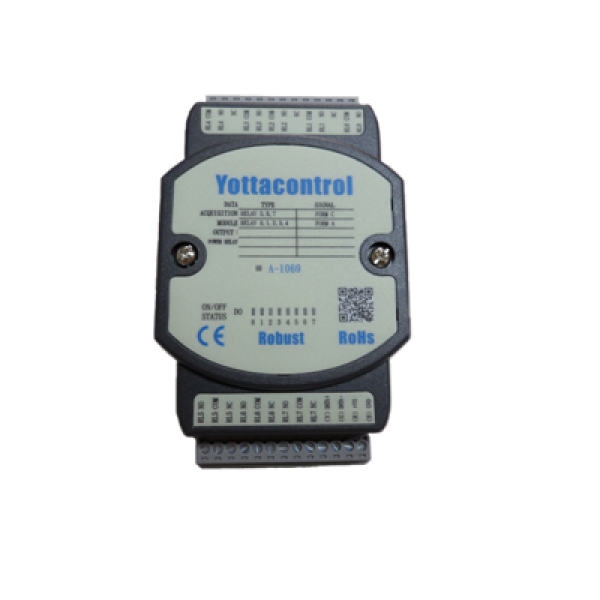

A Series Remote IO Modules
- RS-485 Interface
- Supports Modbus RTU / ASCII
- LED Replica Cartier Watches Indicators
- Isolation voltage: 5000 V DC
- Wide operation temperature : -20 ~ +75 °C
- Dual watchdog timer
- Surge , EFT and ESD protection
- Free PC software
|
Type
|
A-1057
|
A-1068
|
|
Output |
12 |
8 |
|
Input |
+10 ~ +30 VDC |
+10 ~ +30 VDC |
|
Power Consumption |
Nearly 24 VDC 0.96 W |
Nearly 24 VDC 0.96 W |
|
Input Power |
+10 ~ +30VDC |
+10 ~ +30 VDC |
|
Output Type |
Source |
Signal Relay |
|
O/P Rating(Max) |
10 – 35 VDC/1A |
120VAC/0.5A 30VDC/1A |
|
Isolation Voltage |
5000VDC |
5000VDC |
|
LED |
YES |
YES |
|
Modbus Support |
Modbus RTU + Modbus ASCII |
Modbus RTU + Modbus ASCII |
|
Watcdog Timer |
System m & Communication |
System m & Communication |
