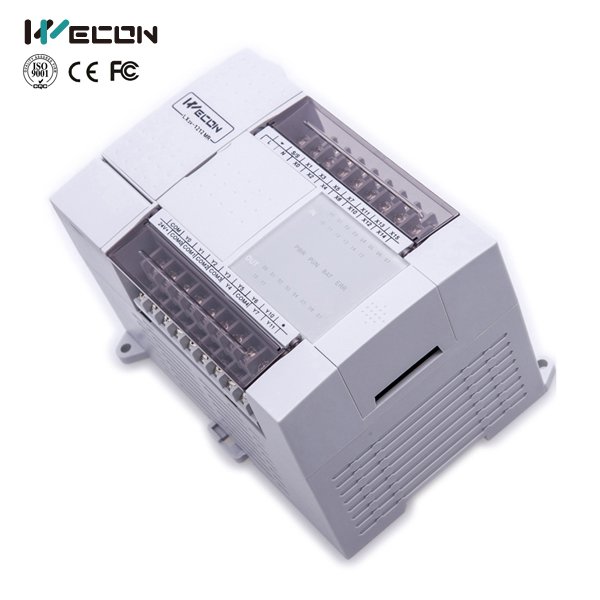

Wecon PLC LX3V Series
LX3V- Series
Model No.1212MR/T : 12xDI/12xDO
Model No.1410MR/T : 14xDI/10xDO
Model No.1616MR/T : 16xDI/16xDO
Model No.2416MR/T : 24xDI/16xDO
Model No.3624MR/T : 36xDI/24xDO
CPU : STM32 CPU,
Sensor Power Supply : DC-24V(400mA)
Main Power Supply :AC100-240V/50-60Hz,DC 24V(Optional)
Communication port : support RS422 & RS485, 2 serial port,
Communication protocol : support FX2N NO PROTOCOL, programming software support FX2N
Environment temperature : 0~55°C
Storage temperature : -20~70°C
LX3V- Series
Model No.1212MR/T : 12xDI/12xDO
Model No.1410MR/T : 14xDI/10xDO
Model No.1616MR/T : 16xDI/16xDO
Model No.2416MR/T : 24xDI/16xDO
Model No.3624MR/T : 36xDI/24xDO
CPU : STM32 CPU,
Sensor Power Supply : DC-24V(400mA)
Main Power Supply :AC100-240V/50-60Hz,DC 24V(Optional)
Communication port : support RS422 & RS485, 2 serial port,
Communication protocol : support FX2N NO PROTOCOL, programming software support FX2N
Environment temperature : 0~55°C
Storage temperature : -20~70°C
Popular and most demanded by one time PLC programmers
Contains large set of instructions
Supports both Ladder and STL type of languages
Decent expansion modules for analog and/or digital type of signals
Economic BD boards for small requirements of analog inputs.
Mobile data cable is used for programming.
Modbus protocol and Wecon protocol selectable, Modbus supports RS-485, WECON supports both RS-485/RS-422.
