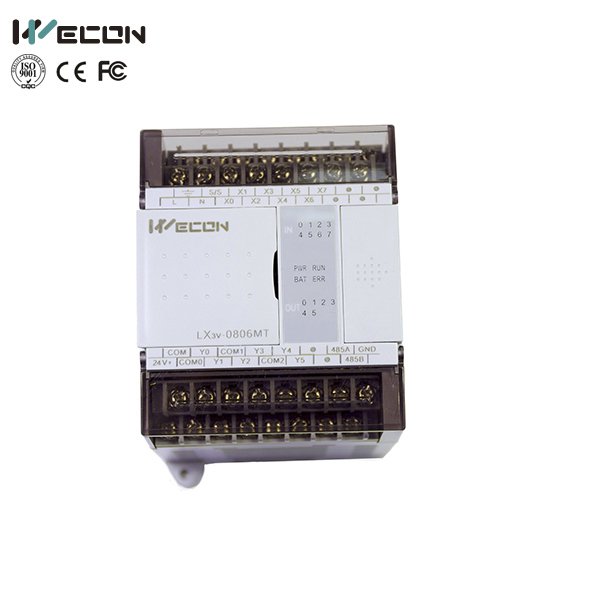

◇Power supply: A: AC85-265V power,D:DC24V power.50W rated power
◇IO: 8xDI/6xDO(transistor-type),2-channel 100K high-speed pulse output
◇Port:RS422, RS485 and 1 BD board supported.
◇Protocol: LX3V-0806MT-A(D)1 ：1S NO PROTOCOL
LX3V-0806MT-A(D)2 ：2N NO PROTOCOL
General
| IO |
8xDI/6xDO |
|---|---|
| Running Mode |
Scan round / Interrupt |
| Programming |
Instruction List / Ladder |
| Total Instructions |
Basic Instructions: 27 Applied Instruction: 136+2 (2 instructions different from Mitsubishi) |
| Execute Time |
Basic Instructions: 0.06us /Applied Instruction: 1~10us |
| Program Capacity |
16K |
| Download / Monitor |
Serial Programming Cable/ Mini USB |
| High Pulse Output |
Transistor Type: 2 Channels（4 Channels: LX3V-0806MT4H） Relay Type: N/A（2 Channels: LX3V-0806MR2H） |
| High Speed Counter |
6 Channels |
| Timer Interrupt |
3 Channels |
| Latched Addresses |
Adjustable |
| Storage |
FLASH |
| Digital Filtering |
Yes, for all input terminal |
| Serial Port COM1 |
RS422 or RS485 |
| Serial Port COM2 |
RS485 |
| Environment Tempeture |
Operating Temperature：0 ~ 55℃/Storage Temperature：-20 ~ 70℃ |
| Operating Humidity |
35~85%RH (No-condensate) |
| Shock Resistance |
JIS C 0040 Standard |
| Noise Immunity |
Noise Voltage： 1000Vp-p Pulse Width: 1us Frequency: 30-100Hz (Noise Simulator) |
Output
| Output Type |
NPN |
|---|---|
| Input Power Supply |
DC 24V |
| Output Circuit | |
| COM Port Current |
<0.1mA (DC30V) |
| Insulation |
Optical Coupling |
| Leak current |
0.1mA /DC 30V |
| Min. Load |
DC5V 2mA |
| Resistive |
0.5A point, 8A / COM port 0.3A HSPO point |
| Inductive |
12W/DC24V 7.2W HSPO point |
| General |
0.9W/DC 24V |
| ON / OFF Response Time |
<0.2ms(Pulse output terminal：<5us) |
AC Power Supply
| Voltage Range |
AC 100V~240V 50Hz~ 60Hz, DC 24V±10% |
|---|---|
| Power Outage Time |
10ms |
| Inrush Current |
<15A 1ms / DC 24V, <15A 5ms (AC100V) <30A 5ms (AC 200V) |
| Power Fuse |
250V/1A (AC Power Supply), 250V/3.15A (DC Power Supply) |
| Power Consumption |
<30W (DC Power Supply), <35W (AC Power Supply) |
| Power Output |
DC 24V 850mA |
