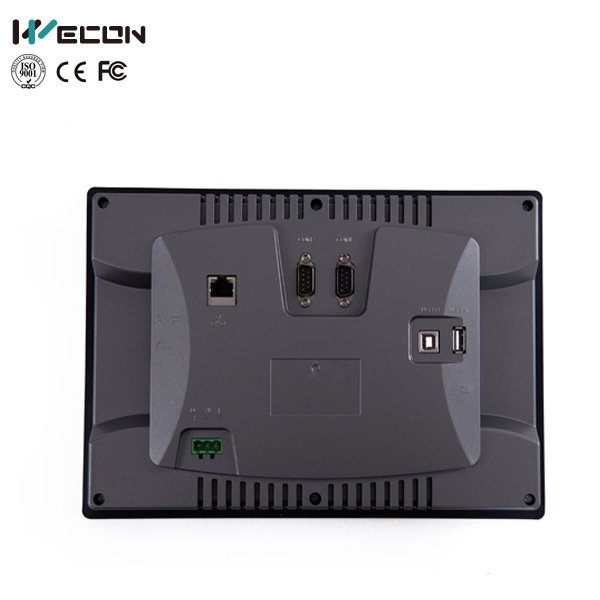

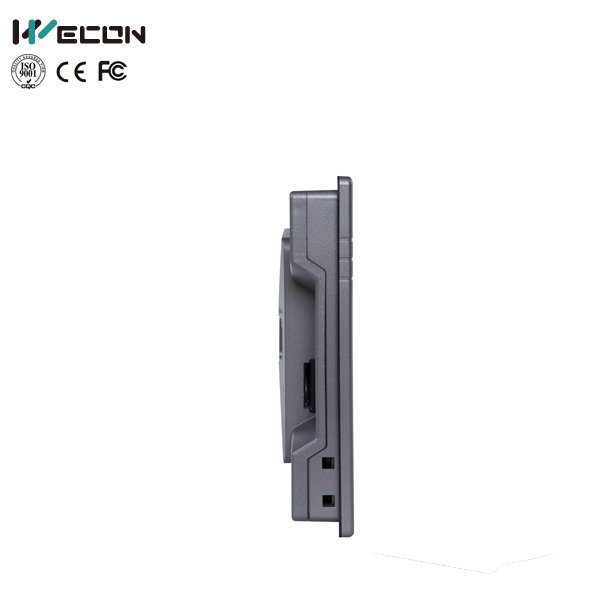

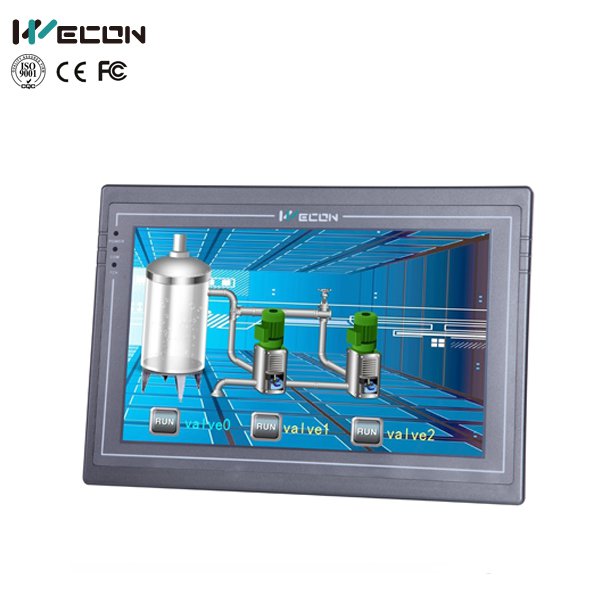

Wecon PI 10.2 inch Human machine interface(HMI): PI8102

  • Hardware: CPU 600MHz, 4GM FLASH, 128M DDII RAM
  • Display size: 10.2 inch
  • Resolution: 800×480 TFT LCD 260,000 colors
  • Interface: RS232/RS485/RS422 (5 COM ports available)
  • Storage: Support Date Storage, SD Card, U Disk
  • Mobile Apps supported, Cloud monitor supported, Multiple users supported, communication encrypted.
  • Programmed by PIStudio
  • WINCE7.0 LINUX is optional

  • Hardware: CPU 600MHz, 4GM FLASH, 128M DDII RAM
  • Display size: 10.2 inch
  • Resolution: 800×480 TFT LCD 260,000 colors
  • Interface: RS232/RS485/RS422 (5 COM ports available)
  • Storage: Support Date Storage, SD Card, U Disk
  • Mobile Apps supported, Cloud monitor supported, Multiple users supported, communication encrypted.
  • Programmed by PIStudio
  • WINCE7.0 LINUX is optional

Hardware

OS

  • Linux QT

CPU

  • Cortex A8 600MHz

Touch Screen

  • High precision four-wire resistive

Display

 Screen Size

  • 10.2 inch

Resolution

  • 800*480

Brightness

  • 300 nit

Contract

  • 500:1

Backlight

  • LED

Backlight Life

  • 50,000 hours

Colors

  • 260k colors (18bit)

Storage

Flash

  • 4GB EMMC

RAM

  • DDRIII 512MB

SD card

  • Yes

Power

Power Supply

  • 24V DC(12~28V DC)

Power

  • <10W

Power Isolation

  • Built-in Power Isolation

Withstand Voltage

  • 500V AC (<1 minute)

Insulation Resistance

  • Upon 20MΩ 500VDC

Seismic resistance

  • 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes)

Ports

USB Port

  • USB Host USB 2.0 x 1 USB Client USB 2.0 x 1

Ethernet

  • Yes

CAN

  • Yes
