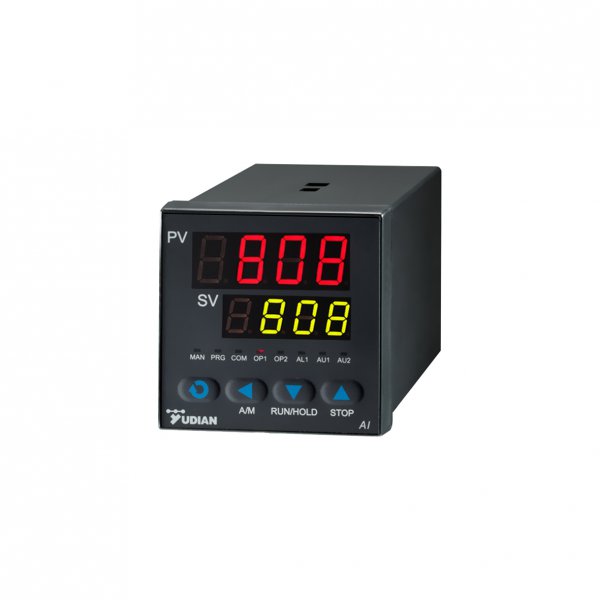

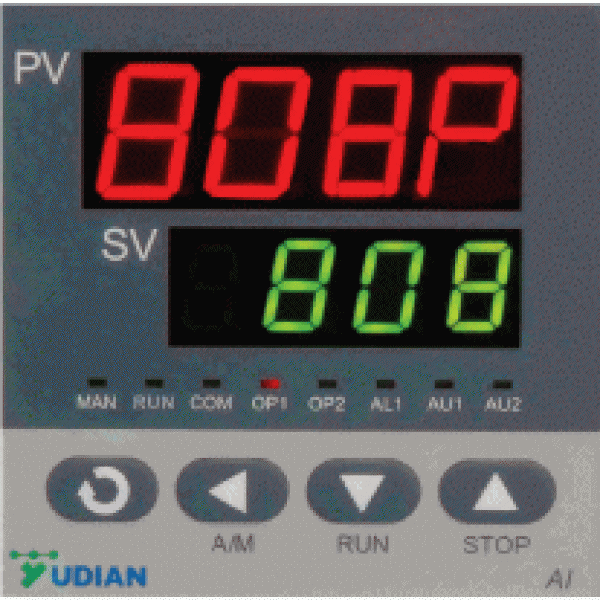

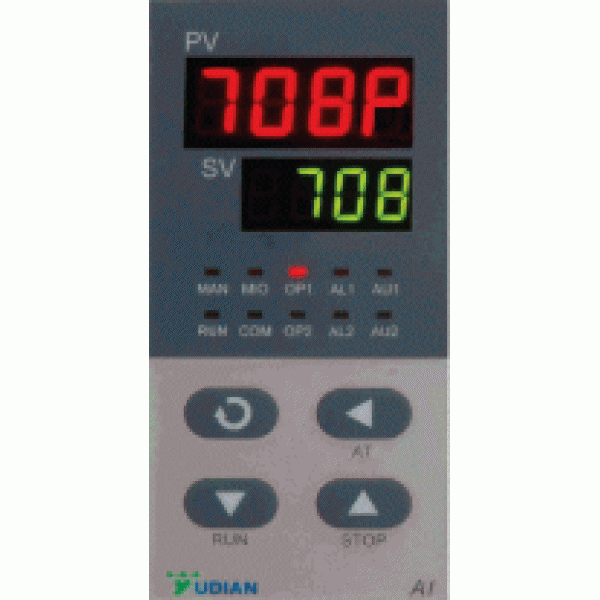

Programmable Controller AI-708P/808P



  • High Accuracy FS 0.1%
  • Auto-Tune PID Function
  • RS-485 Communication
  • ºC / ºF Selectable
  • Manual/Auto Control
  • Event Output
  • 50 Segments Programs (30+20)



  • High Accuracy FS 0.1%
  • Auto-Tune PID Function
  • RS-485 Communication
  • ºC / ºF Selectable
  • Manual/Auto Control
  • Event Output
  • 50 Segments Programs (30+20)





Inputs

:Thermocouple : K,S,R,T,E,J,B,N,WRe3-WRe25, WRe5-WRe26
RTD: Cu50, Pt100
Linear Voltage : 0~5V, 1~5V, 0~1V, 0~100mV, 0~60mV,0~20mV,0~10V
Linear Current : 0~10mA, 0~20mA, 4~20mA



Control Output

:Relay: 2A / 250V
SSR Drive : 0 ~ 12VDC
Linear Current Output : 0~20mA, 4~20mA
TRIAC (Singe Phase) : Zero Crossing , Phase Shift
Alarm Outputs : Relay - 1A / 250V SSR Drive - 0 to 12VDC

Communication

: RS-485,RS-232(Plug-in Modules)

Power supply

: 100-240VAC (50/60Hz) or 24VDC

Accuracy

: FS +/- 0.1%, Sample Time : 250ms

Display resolution

: 0.0ºC / 0.0ºF, 0.000 A / V

Dimensions (W x H)

: 96 x 96mm,160 x 80mm,80 x 160mm,72 x 72mm,96 x 48mm,48 x 96mm
