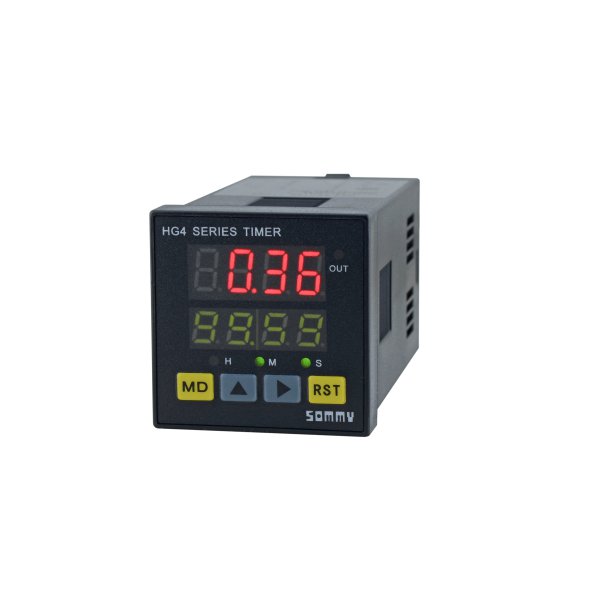

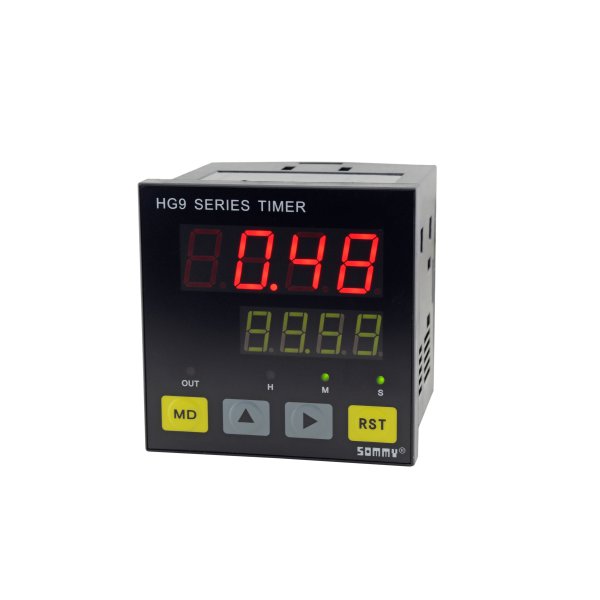

HG Series Timer 4-Digit Digital Timer
- Dual line 4 digit LED display;
- High timing accuracy;
- Range of setting time and delay time
- can be setted freely (11 kinds).
- Multi-mounting size can be chosen.
|
Power Supply |
: 220/110VAC±10% 50/60Hz (HP4 just for 220V power supply) |
|
Power Consumption |
: ≤3VA |
|
Mounting Mode |
: Panel Mount |
|
Ambient Humidity, temperature |
: ≤85% RH, 0～50℃ |
|
Timing Range |
: 0.01-99.99S,0.1-999.9S,1-9999S,1-99M59S,0.01-99.99M,0.1-999.9M |
|
: 1-9999M,1-99H59M,0.01-99.99H,0.1-999.9H,1-9999H |
|
|
Timing Accuracy |
: ±0.1％±0.05sec |
|
Reset Mode |
: Panel reset, External Connection reset, Auto Reset or Power OFF Reset can be chosen |
|
Input Signal |
: low level effective |
|
Terminal Capacity |
:3A/250VAC or 6A/30VDC |
|
Pulse Interference (AC) |
: ±1.8KV |
|
Dielectric |
: AC 1500V 1min |
|
Insulation Impedance |
: DC 500V ≥ 100MΩ |
