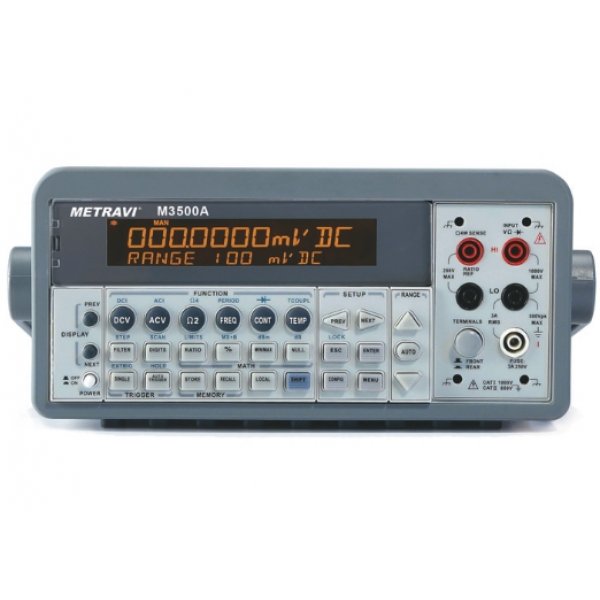

M-3500A

•    Most Stable bench top 6-1/2 Digits Digital Multimeter
•    Has high accuracy and has USB PC Interface facility.
•    High sampling rate and data rate of 2000 readings/Sec
•    AC measurement range 3Hz to 300kHz
•    Two Wire and Four Wire Resistance measurement
•    Period, temperature measurements
•    It can store up to 2000 readings in data memory
•    11 measurements and 8 math function
•    Display : unique 5x7 dot matrix VFD Dual displays with three color annunciators
•    DC Voltage : 0 - 100mV / 1 / 10 / 100 / 1000V
•    Accuracy : ±0.003%
•    AC Voltage : 0 - 100m / 1 / 10 / 100 / 750V
•    Accuracy : ±0.04%
•    DC Current : 10m / 100m / 1 / 3A
•    Accuracy : ±0.005%
•    AC Current : 0 - 1 / 3A
•    Accuracy : ± 0.3%
•    Resistance : 0 - 100 / 1k / 10k / 100k / 1M / 10M/ 100M.Ohms
•    Accuracy : ±0.003%
•    Diode and continuity test
•    Limit, Ratio MX+B, %, dBm, dB, Min / Max, Null functions
•    Trigger function available
•    Thermal measurement function supports two types of measurements, Thermocouple and RTDs, For thermocouples E, J, K, N, R, S and T types can be used.
•    Multi-Point Scan option can be used that supports up to 10 Channels (optional)
•    Free MatLab and Labview applications that allows user to do a variety of tasks. Also features the PT-Tool that can acquire data directly from the measurement into MS Word and Excel even without MS Word or Excel. User can chose PT-Link which is a stand-alone application.
