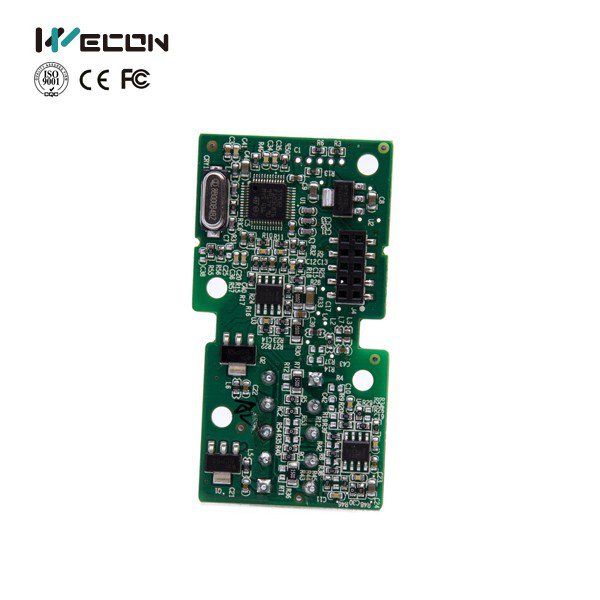

LX3V-2PT2DA-BD plc module
- Wecon LX3V-2PT2DA-BD plc module
-
◇ I/O terminal: 2 channels thermal resistance input/2 channels analog output
-
Features:
1.AD、DA、PT、TC Mixed；2.Light capacity；3.Low Cost；4.one PLC can connect more than two BD boards, one of them is Analogue BD board, the other is communicating board.
- Wecon LX3V-2PT2DA-BD plc module
-
◇ I/O terminal: 2 channels thermal resistance input/2 channels analog output
-
Features:
1.AD、DA、PT、TC Mixed；2.Light capacity；3.Low Cost；4.one PLC can connect more than two BD boards, one of them is Analogue BD board, the other is communicating board.
Performance specifications
|
|
Resolution(bit) |
Input/Output |
Corresponding range of values |
Others |
||
|
Input |
Output |
Sensor available |
||||
|
DA |
12 |
- |
Current: 4~20mA |
- |
0~2000 |
|
|
AD |
12 |
Current: 4~20mA |
- |
- |
0~2000 |
|
|
PT |
14 |
- |
- |
Sensor: Pt100:-100~600℃ |
-1000~6000 |
|
|
TC |
14 |
- |
- |
Sensors: K type: -100~1200℃ J type: -100~600℃ |
-1000~12000 -1000~6000 |
|
Wecon LX3V series PLC module
|
LX3V series BD module |
Description |
|
LX3V-2AD2DA-BD |
2 channels analog input（4-20mA)/2 channels analog output （4-20mA） |
|
LX3V-2PT2DA-BD |
2 channels thermal resistance input/2 channels analog output（4-20mA） |
|
LX3V-2TC2DA-BD |
2 channels thermal couple input/2 channels analog output |
|
LX3V-2AD-BD |
2 channels analog input(4-20mA) |
|
LX3V-2DA-BD |
2 channels analog output(4-20mA) |
|
LX3V-2PT-BD |
2 channels thermal resistance input |
|
LX3V-2TC-BD (developing) |
2 channels thermal couple input |
|
LX3V-485-2BD (developing) |
2 channels RS485 communication board |
|
LX3V-CAN-BD (developing) |
1 channel CAN communication board |
|
LX3V-ETH-BD (developing) |
1 channels Ethernet communication board |
