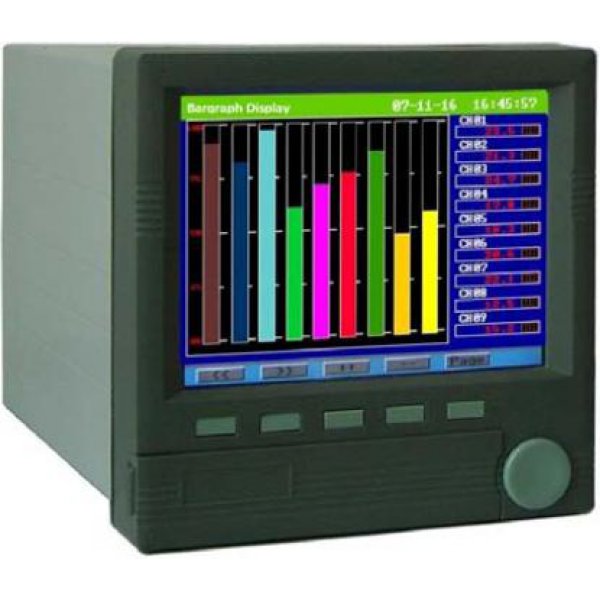

Khoat PAPERLESS RECORDER KH-300G

Khoat Make Color Paperless Recorder

No. of Channels - 1, 8, 16
Adopts 5.6 inch TFT color LCD, wide visual angle, high lightness and contrast.
English Menu designed. Easy and clear screen, rich information, kind human-meter operation screen, friendly - user, easy operation
Adopt SMT technology, more concise designed.
Universal input for multi channels, adopt photoelectric isolation among channels in order to avoid the interference among channels.
T.C and RTD input adopts nonlinear amendment with high accuracy and stable performance.
Huge capacity storage: 8MB for long time record.

Khoat Make Color Paperless Recorder

No. of Channels - 1, 8, 16
Adopts 5.6 inch TFT color LCD, wide visual angle, high lightness and contrast.
English Menu designed. Easy and clear screen, rich information, kind human-meter operation screen, friendly - user, easy operation
Adopt SMT technology, more concise designed.
Universal input for multi channels, adopt photoelectric isolation among channels in order to avoid the interference among channels.
T.C and RTD input adopts nonlinear amendment with high accuracy and stable performance.
Huge capacity storage: 8MB for long time record.

Analog Input Specification
Input Signal	: Linear Voltage : 0－5V, 1－5V, standard range: -20000 to 20000. : Linear current : 0－10mA ,should be external connection with 500Ω resistor; 4－20mA and should be external connection 250Ω precise resistor. Standard range: -20000 to 20000. : Thermocouple Input: K ( -50 ~ 1300℃ )、S ( -50 ~ 1700℃ )、T ( -200 ~ 350℃ ) 、E ( 0 800℃ )、 J ( 0 ~ 1000℃ )、B ( 300 ~ 1800℃ )、N ( 0 ~ 1300℃ ), R(-50-1700℃) , WRE526 (-0 ~ 2300℃), WRE235 (0 ~ 2300℃) : RTD Input : Cu50 ( -50 ~ 150℃ ) , Pt100 ( -200 ~ 600℃ ), Cu100 ( -50 ~ 150℃ ) : Other linear input: 0－20mV,0-60mV, 0-100mV, 0-500mV, standard range : -20000 to 20000.
Accuracy	: 0.2 grade when RTD, linear voltage, linear current and T.C input : 0.2%FS±2.0℃ when T.C input with cold junction compensation by internal part of recorder.
Sampling Rate	: ≤3 s
Temperature Shift Coefficient	: Standard value: 50PPM
CMR Ratio	: 85-110dB
Input Independence	: 500Kω when standard voltage input; 250Ω ( 4-20mA). Or 500Ω (0-10mA) when standard current input More than 20MΩ when other signal input
Isolation	: Isolated voltage between channels and ground: 1000VAC.Isolated voltage between channels:400VAC
Thermocouple	: Internal resistor: not more than 1000Ω. Cold junction compensation tolerance: maximum +-2℃
RTD	: Current 2.5mA, three wire, each wire with same resistance: max.10ohm per each wire.
Input Error Action	: When T.C., RTD,1-5VDC, 4-20mA input and there is open or short circle, there are three ways available: measured value as maximum, minimum or hold
Power Supply Specification
Power supply	: VAC: 100-240VAC, frequency: 47-63 HZ, max. power consumption: 5VA : VDC: 24VDC,max power consumption: 5VA (please advise when order)
Insulation	: When power insulation to ground is higher than 1500VAC, leakage current: 10mA for one minute When power insulation to housing is higher than 1500VAC, leakage current: 10mA for one minute
Output Specification
Aux. power supply	: 24VDC, 50mA
Alarm Output	: Up to 16 alarm output, 250VAC, 3A relay contact output: NO or NC
Retransmission	: Up to 6 channels, 4-20mA retransmission output with GND
Others
Processor	: 32 bits, high performance, high integrated ARM CPU
Hardware guider	: CPU inner integration for long time, stable and safe operation
Hardware Clock	: Adopt hardware real clock with high stability. Clock accuracy: +-5ppm. After power off, Li battery for continual power supply. The validity of battery is 30days.
Data Memory	: All data will be stored in FLASH memory, not need reserve battery in order to ensure that all the history data and configuration parameters will be not lost when power off.
