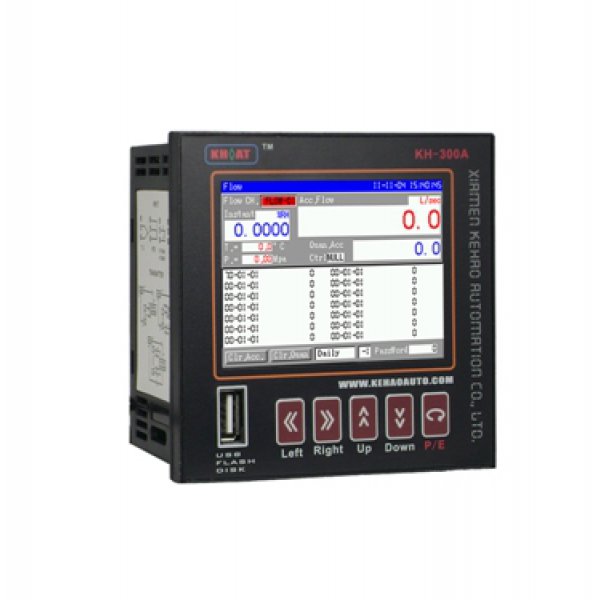

Khoat Color Paperless Recorder KH-300-AB/AL

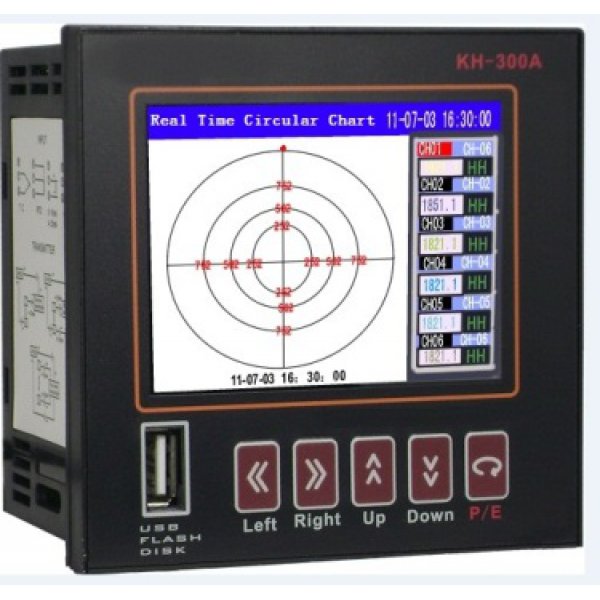

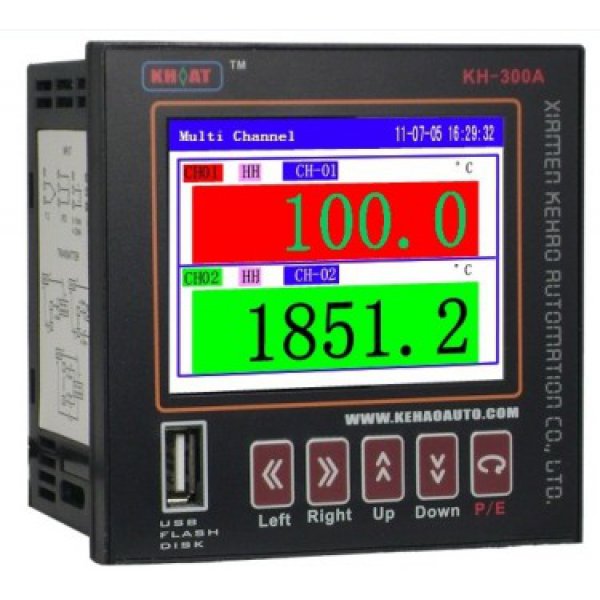

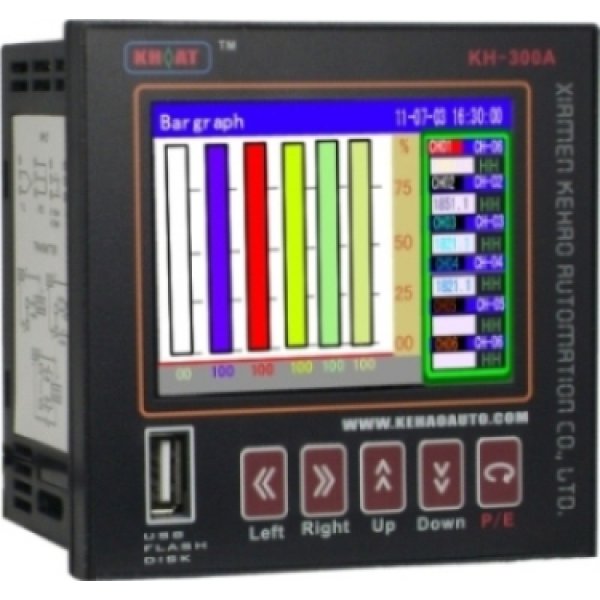

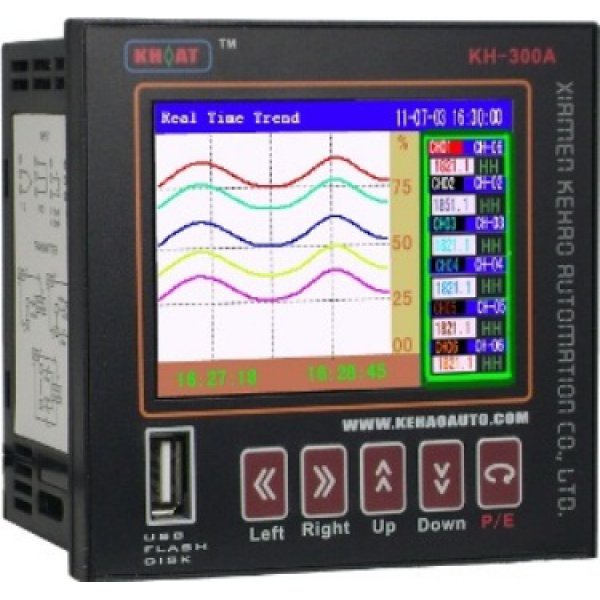

K-Hoat Make Color Paperless Recorder
- With No.Of Channels 2 & 6

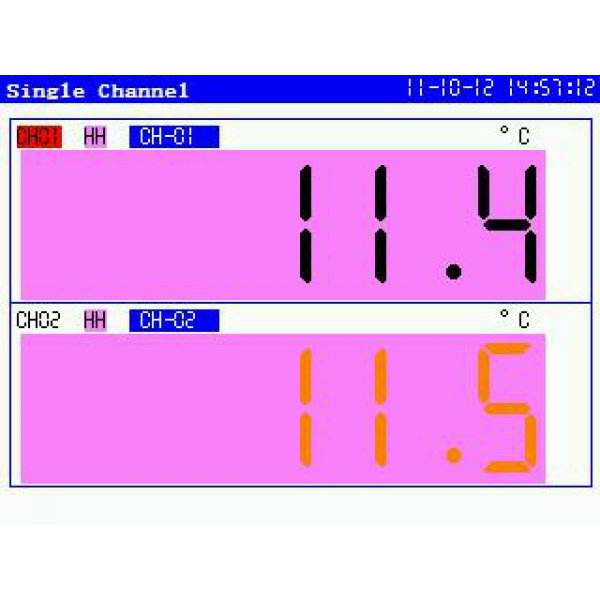

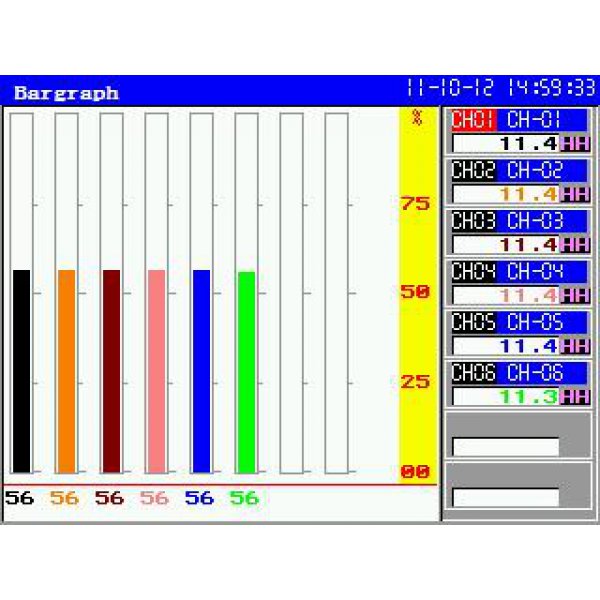

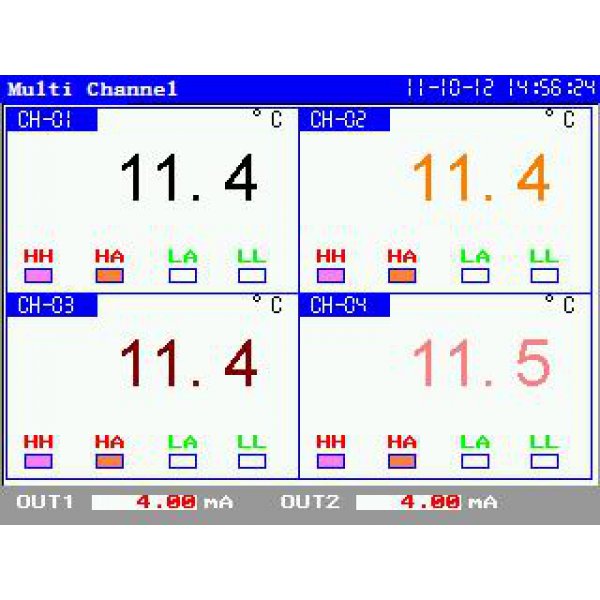

- Adopts 3.2 inch TFT color LCD, wide visual angle, high lightness and contrast.
- English Menu designed. Easy and clear screen, rich information, kind human-meter operation screen, user-friendly, easy operation
- Adopt SMT technology, more concise designed.
- Universal input for multi channels, adopt photoelectric isolation among channels in order to avoid the interference among channels.
- T.C and RTD input adopts nonlinear amendment with high accuracy and stable performance.
- Huge capacity storage: 8MB for long time record
K-Hoat Make Color Paperless Recorder
- With No.Of Channels 2 & 6
- Adopts 3.2 inch TFT color LCD, wide visual angle, high lightness and contrast.
- English Menu designed. Easy and clear screen, rich information, kind human-meter operation screen, user-friendly, easy operation
- Adopt SMT technology, more concise designed.
- Universal input for multi channels, adopt photoelectric isolation among channels in order to avoid the interference among channels.
- T.C and RTD input adopts nonlinear amendment with high accuracy and stable performance.
- Huge capacity storage: 8MB for long time record
|
Accuracy |
: ±(0.2%FS+1)digit |
|
Power supply |
: 100-240VAC; 24VDC |
|
Display |
: 3.5 inch, 320*240 TFT color LCD |
|
Input Signal |
: 3.5 inch, 320*240 TFT color LCD |
|
Linear current |
: 0-5VDC, 1-5VDC, Linear current: 0-10mA, 4-20mA |
|
Frequency input |
: 0-5KHZ, one channel, Specials: 0-20mV,0-60mV, 0-100mV, 0-500mV |
|
Output Module |
: Relay alarm output, 4-20mA Retransmission output, RS485 Communication port, 24VDC Aux. Power Supply output RS 32 Printing port, USB Port |
|
Record time |
: Flexible setting interval time: 1s, 2s, 3s, 4s….3600s |
|
Record Time |
: 45days x Record interval time |
|
Environmental temperature |
: 0-50°C |
|
Environmental humidity |
: 0-85%RH |
|
size |
: 96×96×70mm |
