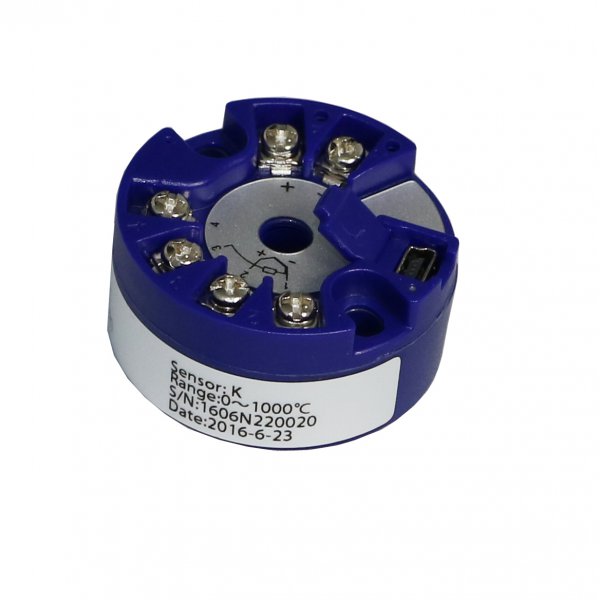

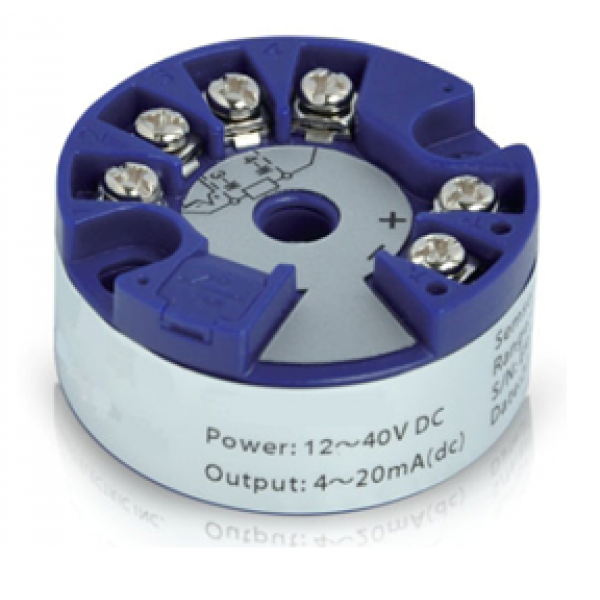

KH213- Head Mounted Smart Temperature Transmitter

Head mounted temperature transmitter is used for resistance
thermometer (RTD), thermocouple (TC), Resistance transmitter,
voltage (mV) signal input, two wire 4-20mA analog output,
mounted inside transmitter (form B)


Function

  • Transfer various kinds of input signal into 4-20mA output
  • Input: RTD, Thermocouple
  • Configuration by PC
  • 2 kinds of resistance thermometer input (RTD)
  • 8 kinds of thermocouple (TC)
  • Built-in cold junction compensation

Head mounted temperature transmitter is used for resistance
thermometer (RTD), thermocouple (TC), Resistance transmitter,
voltage (mV) signal input, two wire 4-20mA analog output,
mounted inside transmitter (form B)


Function

  • Transfer various kinds of input signal into 4-20mA output
  • Input: RTD, Thermocouple
  • Configuration by PC
  • 2 kinds of resistance thermometer input (RTD)
  • 8 kinds of thermocouple (TC)
  • Built-in cold junction compensation

Technical Specification

  • Output Signal: 4-20mA

  • Max Load:max. (V power supply-7.5V)/0.022A (current output)

  • Measurement:tempt-lineatiry,resistance-linearity, voltage-linearity

  • Circuit limit: ＜=22Ma

  • Response time: ＜=1second

  • Saturation current: Low side 3.9mA, high side 20.5Ma

  • Alarm current: sensor damger or sensor turnoff output is 3.9mA

or 22mA(except TC)

  • Accuracy: 0.1%FS

  • Measuring accuracy is related to measureing rang

  • Power supply: U=12V to 40V

  • Working temperature: -40 to 85℃

  • Storage temperature: -40 to 100℃

  • Condenstaion: Allowable

  • Protection: IP00; IP66 (mounted)

  • Earthquake resistance:4g/2 to 150HZ

  • Voltage effection: can ignore

  • Mounted angle: no limit

  • Mount area: top of B type box
