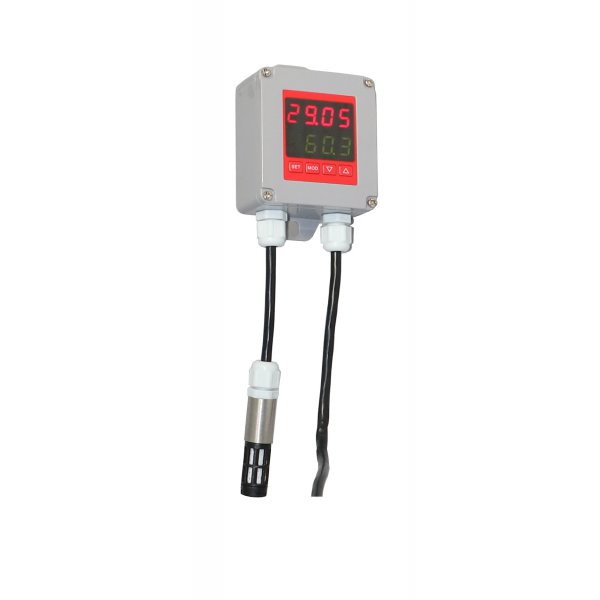

KH-101 Temperature and Humidity Transmitter
Application
KH101 is digital temperature and humidity sensor, widely used for air temperature and humidity monitoring in Medicines, food,
meteorological environment, libraries, warehouse or storehouse, equipment room etc and also for industrial automation process
monitoring and researching area.
Feature
High Safety- Safe guider built-in to ensure system safety
Digitized sensor- Adopts original imported digital type temperature and humidity sensor (IC) , high measuring accuracy and high stability
Output- 4-20mA , 3 wire
Optional installation -Wall or duct type ,optional
Application
KH101 is digital temperature and humidity sensor, widely used for air temperature and humidity monitoring in Medicines, food,
meteorological environment, libraries, warehouse or storehouse, equipment room etc and also for industrial automation process
monitoring and researching area.
Feature
High Safety- Safe guider built-in to ensure system safety
Digitized sensor- Adopts original imported digital type temperature and humidity sensor (IC) , high measuring accuracy and high stability
Output- 4-20mA , 3 wire
Optional installation -Wall or duct type ,optional
Specification
Response time- 3 second
Display Resolution- T: 0.01, H: 0.1
Temperature accuracy- ±0.5°C@25°C
Humidity accuracy- ±3%RH
Measured range- T:-20 to 80°C or -20 to 120°C
Measured range- H: 0-100%
Storage temperature- -40 to 85 °C
Storage humidity- 5-90% (No dew)
Power supply- 24VDC
Power consumption- ≤0.5W
Order Code
Item- KH101 Temperature and humidity transmitter with 4-20mA output
Installation Type -B Wall Type
-G __
Temperature Range -A-20 to 80°C
-B-20 to 120°C
