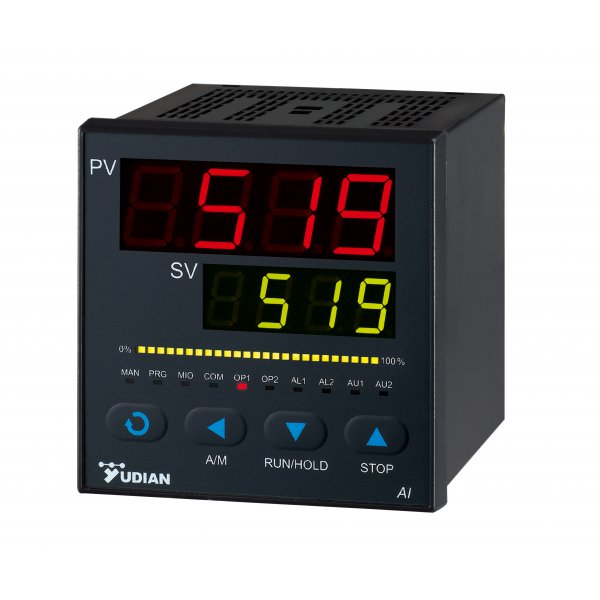

Process Controller AI-519
• Universal thermocouples and selectable RTDs and linear current/voltage signals. Integrating non-linear graduation
tables, digital calibration and auto zero technology to achieve accurate and stable measurement.
• Advanced artificial intelligence (AI) control algorithm with auto tuning function without overshooting.
• Auto/manual bumpless switch and soft-start function.
• Universal thermocouples and selectable RTDs and linear current/voltage signals. Integrating non-linear graduation
tables, digital calibration and auto zero technology to achieve accurate and stable measurement.
• Advanced artificial intelligence (AI) control algorithm with auto tuning function without overshooting.
• Auto/manual bumpless switch and soft-start function.
Accuracy : FS +/-0.3%, Sample Time : 500ms
Input : Thermocouple, K, S, R, E, J, N, Cu50, Pt100, Analog signal
Output : Relay, SSR Drive, Analog signal
Power Supply : 100-240VAC (50/60Hz) or 24VDC ºC / ºF Selectable
Communication : RS-485
Soft Start Function
Auto/Manual Selectable
Alarm function : high limit, low limit, deviation high limit and deviation low limit; with alarm blocking at the beginning of power on. 2
Front panel dimension : 96×96mm, 160×80mm, 80×160mm, 48×96mm, 96×48mm, 48×48mm, 72×72mm
Panel cutout dimension : 92×92mm, 152×76mm, 76×152mm, 45×92mm, 92×45mm, 45×45mm, 68×68mm
