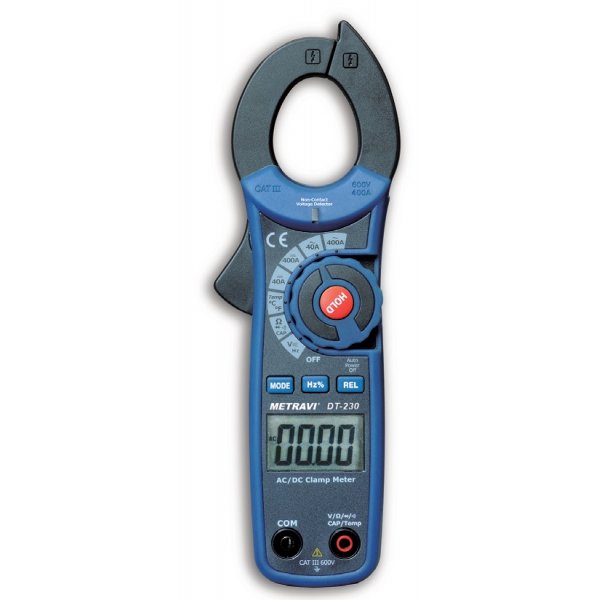

DT-230
- Data Hold Facility
- Built-in Non Contact Voltage Detector
- Fully Protected up to 600V DC/AC RMS in all ranges
including Frequency, Resistance, Capacitance and Continuity test
- Low Battery and Over Range Indication
- Display: 3-3/4 Digits 3999 Counts Backlit LCD
- Confirms to CAT III 600V
- Clamp Jaw Dia: 30mm
- DC Voltage : 0 - 400m/4/40/400/600V.
- Accuracy : ±0.8%
- AC Voltage : 0 - 400m/4/40/400/600V.
- Accuracy : ±1.5%
- DC Current : 0 - 40/400A.
- Accuracy : ±2.5%
- AC Current : 0 - 40/400A.
- Accuracy : ±2.5%
- Resistance : 0 - 400/4k/40k/400k/4M/40M.Ohms
- Accuracy : ±1.0%
- Temperature : -20°C to 760°C / -4°F to 1400°F
- Accuracy : ±3.0%
- Frequency : 10 ~ 10KHz
- Accuracy : ±1.5%
- Capacitance : 0 - 40n/400n/4u/40u/100uF
- Accuracy : ±3.0%
- Diode Test and Continuity Test
- Confirms to CE, IEC 61010, CAT-III 600V
