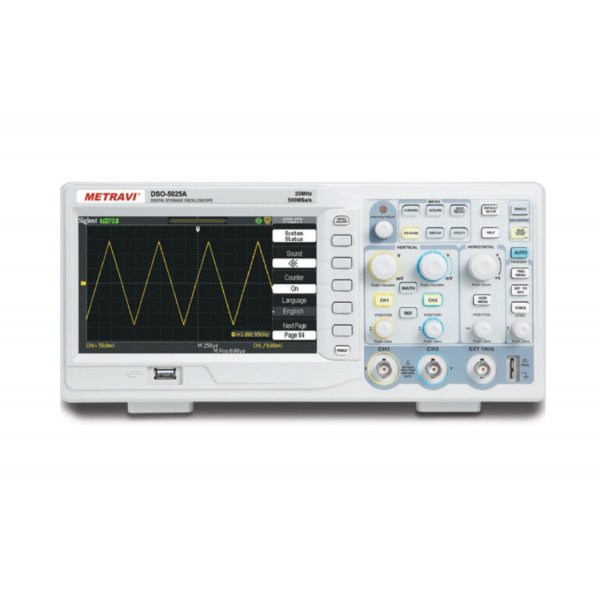

DSO-5025A

  • 25MHz Bandwidth
  • 7 Inch Color TFT-LCD Display, 480*234
  • 500MSa/Sec Sampling Rate
  • Channels:2CH+1EXT
  • Memory Depth: 32kpts
  • 6 digits hardware Frequency Counter, real time counting display
  • Support SCPI programming command control
  • Interface: USB Device ,USB Host, RS-232, Pass/Fail
  • Unique digital filter and data recorder function
  • Embedded 12 languages, online help, one key storing and one key printing
  • Vertical Sensitivity: 2mV ~ 10V/Div
  • 8 Bit Vertical Resolution
  • Trigger Source: CH1,CH2,Ext,Ext/5,AC Line
  • Trigger Type: Edge, Pulse, Video, Slope, Alternative
  • Math Operation: +,-,*,/,FFT

  • 25MHz Bandwidth
  • 7 Inch Color TFT-LCD Display, 480*234
  • 500MSa/Sec Sampling Rate
  • Channels:2CH+1EXT
  • Memory Depth: 32kpts
  • 6 digits hardware Frequency Counter, real time counting display
  • Support SCPI programming command control
  • Interface: USB Device ,USB Host, RS-232, Pass/Fail
  • Unique digital filter and data recorder function
  • Embedded 12 languages, online help, one key storing and one key printing
  • Vertical Sensitivity: 2mV ~ 10V/Div
  • 8 Bit Vertical Resolution
  • Trigger Source: CH1,CH2,Ext,Ext/5,AC Line
  • Trigger Type: Edge, Pulse, Video, Slope, Alternative
  • Math Operation: +,-,*,/,FFT
