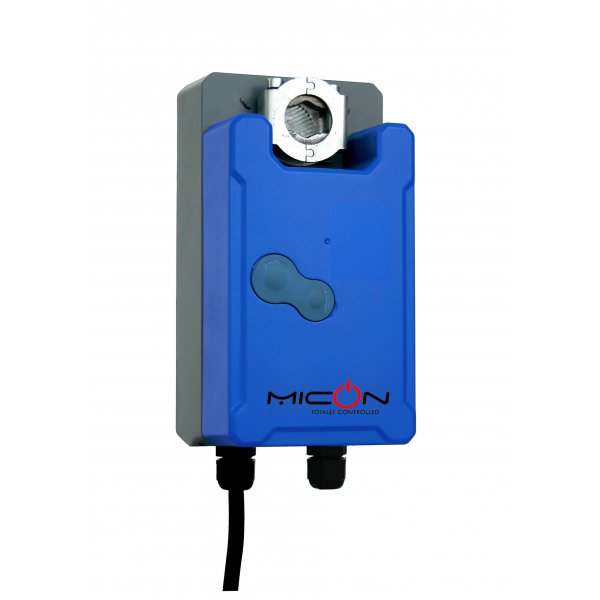

Damper Actuator

Applications & Features

  • Special designed for the damper control in HVAC system

  • Assembling: Easily connect damper and actuator with

allen screw

  • Long life: The design makes the actuator get longer life

  • Manual: It can be manual operated with the button

  • Safety: The actuator has overload protection design and

does not need any limit switch

  • High-level protection and lower noise: up to IP65

Applications & Features

  • Special designed for the damper control in HVAC system

  • Assembling: Easily connect damper and actuator with

allen screw

  • Long life: The design makes the actuator get longer life

  • Manual: It can be manual operated with the button

  • Safety: The actuator has overload protection design and

does not need any limit switch

  • High-level protection and lower noise: up to IP65

Specifications

  • Torque:5/10/20/40Nm

  • Direction of rotation:set by switch

  • Position indicator:mechanical

  • Manual override:set by push button

  • Protection: up to IP65

  • Angle of rotation: max. 95°

  • Power:24VAC/DC: 19.2~28.8V AC/DC

  • power 3W, hold 1W

  • protection: class III-low voltage safe

                       110~220VAC:
                       95~265V, 50/60Hz
                       power 3.5W, hold 1W

  • protection:class II-totally insulated

  • Control Signal: on/off, 3 pos

                               0~10VDC (input impedance 250KΩ)
                               4~20 mA (input impedance 200Ω)

  • Feedback Signal: SPDT/250V, 3A

                              0~10VDC (Max. 1mA)
                              4~20mA (Max. 500Ω)

  • Connecting:cable, 1m 3 x 0.75mm2 or 4 x 0.5mm2

  • Mode of operation: Type1 to EN60730-1

  • Work temp.: -30~+50°C, 95%RH, no condensing

  • Storage temp.: -40~+80°C

  • Approval: CE
