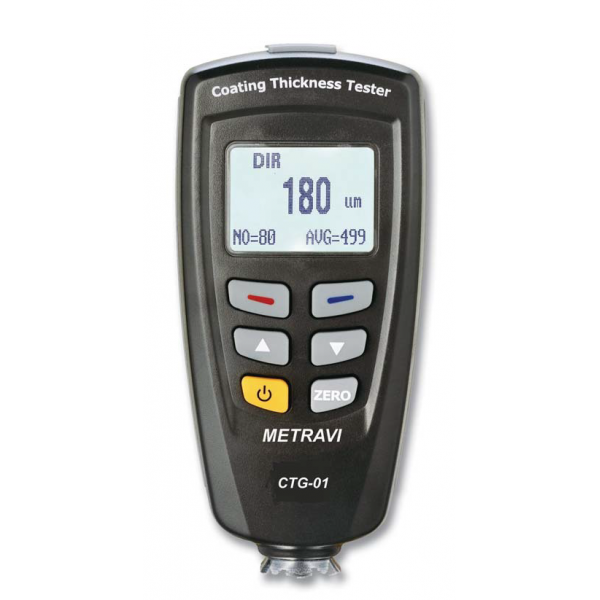

CTG-01

  • Measures coating Thickness on both Ferrous and Non Ferrous  materials with interface cable & S/W
  • The CTG-01 coating thickness gauges work either on the magnetic induction or on the eddy current principle, depending on the type of probe used.
  • You can select the type of probe via MENU system or it will work automatically.
  • Operating with MENU Easily.
  • Zero Calibrating Easily.
  • Low Battery , error indication.
  • USB Interface for PC analysis software.
  • Disable Auto Power Off function via MENU setting.
  • Measuring Ranges :-
  • Ferrous   :  0 ~ 1250um / 0 ~ 49.21mils
  • Non Ferrous  :  0 ~ 1250um / 0 ~ 49.21mils
  • Guaranteed Tolerance :-
  • Ferrous    :  ±3%  +1um / ±3% + 0.039 mils
  • Non Ferrous :  ±3%  +1.5um / ±3% + 0.059mils
  • Precision :-
  • Ferrous  :  0.1um / 0.001 mils
  • Non Ferrous :  0.1um / 0.001 mils
  • Minimum Curvature radius :-
  • Ferrous  :  1.5mm  /  Non-Ferrous  :  3mm
  • Diameter of Minimum Area :-
  • Ferrous   :   7 mm  / Non ferrous  :  5 mm
  • Basic critical thickness  :-
  • Ferrous  :  0.5mm  /  Non Ferrous  :  0.3mm

  • Measures coating Thickness on both Ferrous and Non Ferrous  materials with interface cable & S/W
  • The CTG-01 coating thickness gauges work either on the magnetic induction or on the eddy current principle, depending on the type of probe used.
  • You can select the type of probe via MENU system or it will work automatically.
  • Operating with MENU Easily.
  • Zero Calibrating Easily.
  • Low Battery , error indication.
  • USB Interface for PC analysis software.
  • Disable Auto Power Off function via MENU setting.
  • Measuring Ranges :-
  • Ferrous   :  0 ~ 1250um / 0 ~ 49.21mils
  • Non Ferrous  :  0 ~ 1250um / 0 ~ 49.21mils
  • Guaranteed Tolerance :-
  • Ferrous    :  ±3%  +1um / ±3% + 0.039 mils
  • Non Ferrous :  ±3%  +1.5um / ±3% + 0.059mils
  • Precision :-
  • Ferrous  :  0.1um / 0.001 mils
  • Non Ferrous :  0.1um / 0.001 mils
  • Minimum Curvature radius :-
  • Ferrous  :  1.5mm  /  Non-Ferrous  :  3mm
  • Diameter of Minimum Area :-
  • Ferrous   :   7 mm  / Non ferrous  :  5 mm
  • Basic critical thickness  :-
  • Ferrous  :  0.5mm  /  Non Ferrous  :  0.3mm
