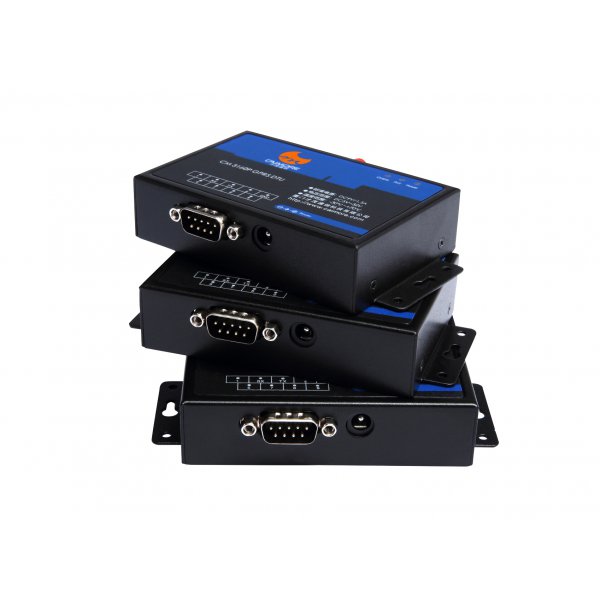

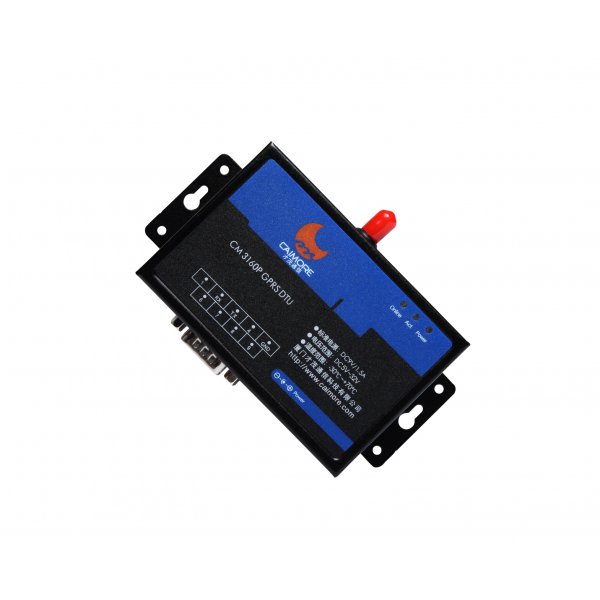

GPRS GSM DTU CM510-13G-SMS

CM 10-13G-SMS GPRS DTU is industrial wireless data transmission device with terminal interface, provide customers with transparent TCP wireless remote data transmission or transparent UDP wireless remote data transmission function through GPRS gsm network.

The device provides serial port RS232, RS485, RS422 and TTL interface, and can directly connect to the customers’ device which has serial port . This product has been widely used in power meter reading, water meters reading, heating network monitoring, gas monitoring, water monitoring, environmental testing, meteorological monitoring, seismic monitoring, traffic control, etc.

Model No.	CM510-13G-SMS
Cellular Parameters
Item	Content
Cellular	GPRS/GSM mode
Standards and frequency bands	Support EGSM 900/ GSM180 dual-band, GSM 800/900 /1800 / 1900MHz quad-band
	Support GSM phase 2/2+
	Support GPRS multi-slot class 10, can select class 12
Coding scheme	CS1~CS4
Communication bandwidth	Theoretical bandwidth ： 171.2Kb/s；actual bandwidth:100Kbits>X>20Kbits/s
Transmit power	GSM850/900：<33dBm；GSM1800/1900：<30dBm
Receiver sensitivity	<-107dBm
Hardware system
Item	Content
CPU	Industrial high-performance processor
MMU	CPU with MMU memory management unit, can prevent memory overflow exception
FLASH	512Kbits
SDRAM	256Kbits
Operating System
Item	Content
Operating System	Using real-time operating system with complete TCP/UDP protocol stack, memory management System unit, strongly real-time feature, upgrades fast, stable system; or embedded UCOS operating system
Operating System
Interface Type
Item	Content
Serial port	1 RS485 interface 1 or RS232 serial port (support RS422/TTL)
	Data bit: 8 bit
	Stop bits: 1bit
	Parity: no parity
	Serial speed: 110bps ~ 115200bps
	Flow Control: None flow control, RTS / CTS hardware flow control or XON / XOFF software flow control
Indicator	With power, ACT communication and online indicator

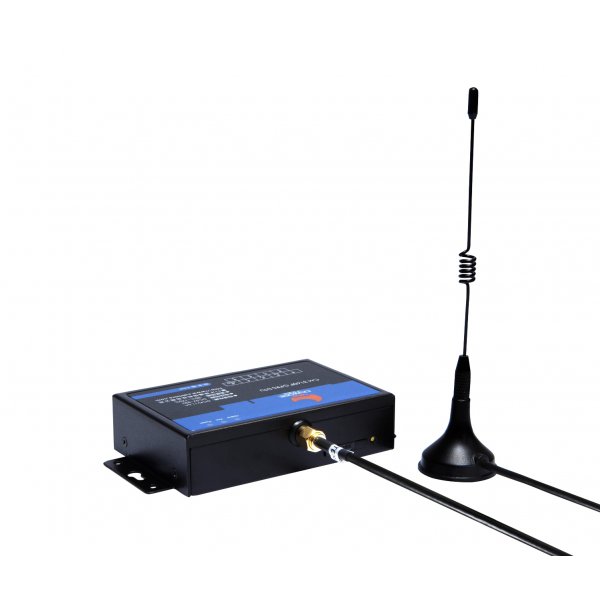

Antenna Interface	Standard SMA female interface, 50 ohm; optional
Antenna Interface	3M/5M/10M/15M antenna extension cable, meet the different needs of customers

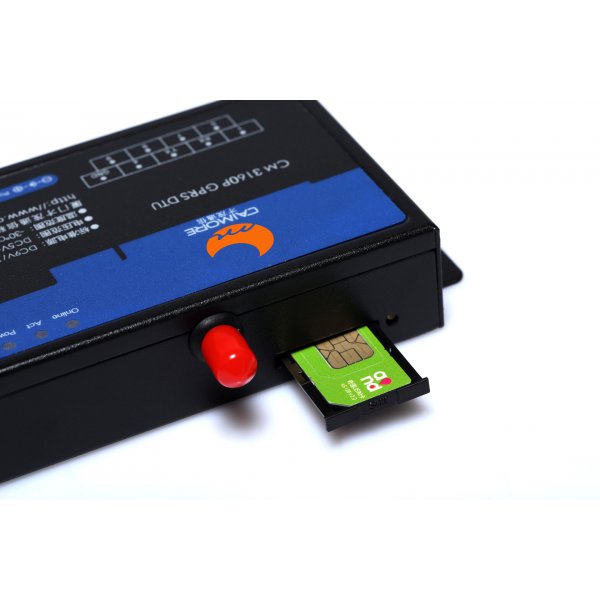

UIM interface	1.8V/3V/5V standard putter user card interface, built-in 15KV ESD protection
UIM interface
Power Interface	Standard 3-pin power jack
Power supply
Item	Content
Supply voltage	Wide voltage design, DC 5V to the DC32V power supply directly to the device; and built-in power supply over-voltage protection and reverse current protection
Standard power	DC9V/1.5A
Supply	DC9V/1.5A
Current while Communicating	Average communication current : 350mA @ +9 VDC;
Current while Communicating	Communicating instantaneous peak current: 1.0A @ +9 VDC
Standby current	Standby average current: <35mA @ +9 VDC
Physical features
Item	Content
Shell	Metal shell: metal case, anti-radiation, anti-interference; shell and system security isolation, lightning protection design; meet the power requirements of safety regulations; protection rating IP41; particularly suit for harsh industrial control environments.
Product dimensions	926222mm（not including the antenna and the fixed parts）
Packing Size	298x226x60mm
Weight	0.41kg
Other parameters
Item	Content
Operating temperature	-25ºC ~+65ºC
Operating temperature	-25ºC ~+65ºC
Extended operating temperature	-35 ºC~+75ºC
Extended operating temperature	-35 ºC~+75ºC
Storage Temperature	-40~+85ºC
Relative Humidity	95%(No condensation)
