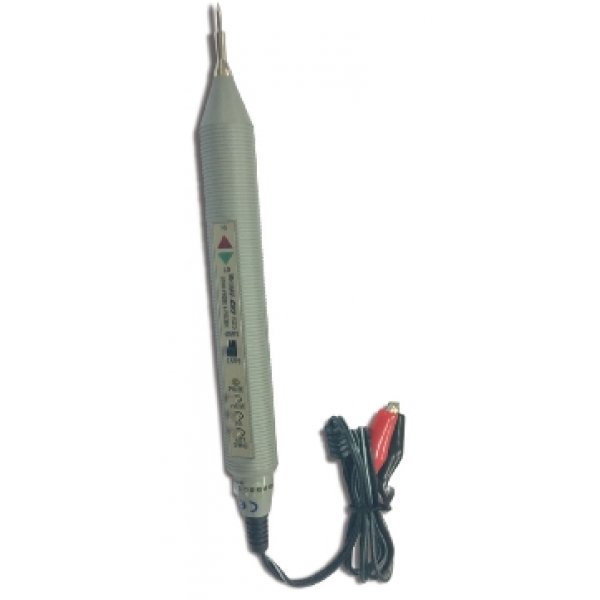

CHY-625
- Useful tool for inspecting and repairing logic circuits
- Used directly to inject a signal into the logic circuits without removing the IC or breaking the circuits.
- The output is changeable between 0.5 to 400Hz, making it suitable for use with either a logic probe or with an oscilloscope
- Pulse Width: 10ms
- Maximum Input Signal Frequency: 50MHz
- Input Impedance 120K.Ohms
- Power Supply Range: 5 – 15 V DC
