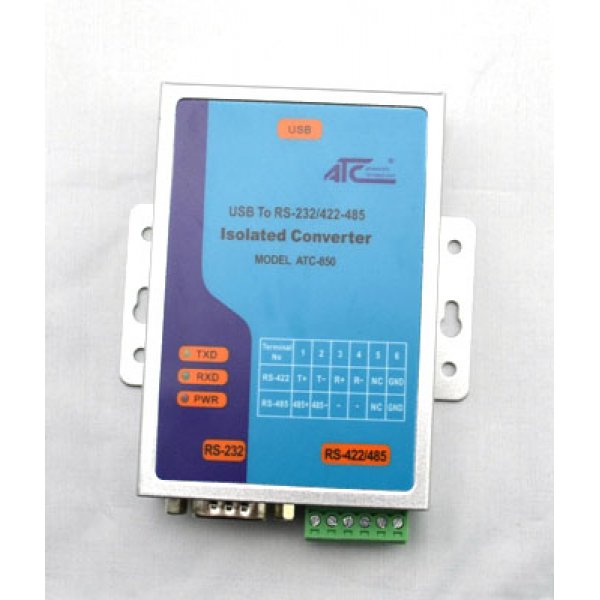

ATC-850 RS-232 / RS-422 / RS-485 (3 in 1) to USB Isolated Converter
USB TO SERIAL CONVERTER ATC-850
USB TO RS 485 INTERFACE CONVERTER
- Computer interface: USB 1.1 2.0 Plug and Play.
- Operational system virtual serial port driver.
- Maximum RS-485 cable length : 1200 m
- Power: from the USB port
- Consumption: <200 mA.
- Isolation: Isolation voltage 3500VRMS 500VDC sequence
- USB port RS-232/422/485 bus protection: 600W.

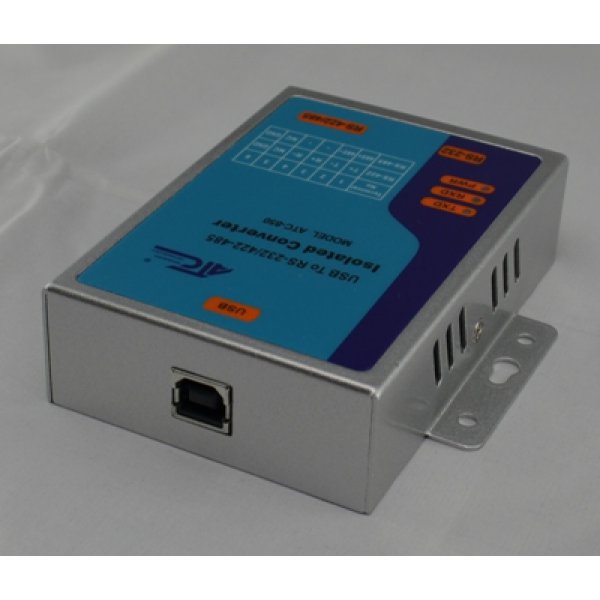

- USB connection: USB -B female connector. 1m USB-A to USB-B cable.

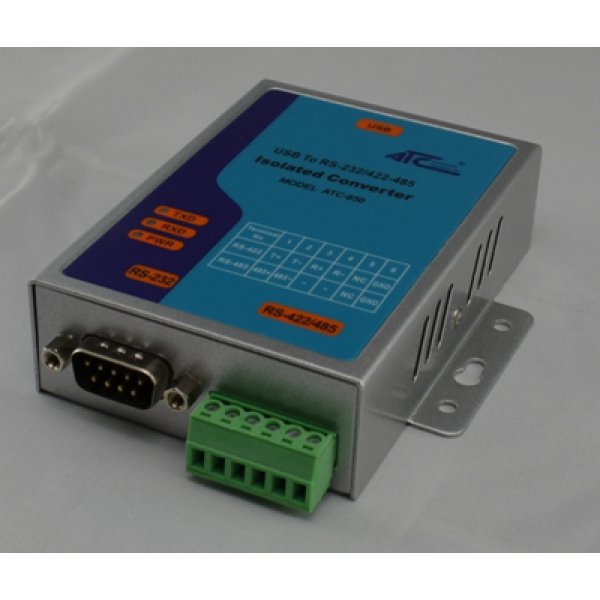

- RS-232 connector:DB9 male
- RS-422/485 connector: 6-bit terminal socket
USB TO SERIAL CONVERTER ATC-850
USB TO RS 485 INTERFACE CONVERTER
- Computer interface: USB 1.1 2.0 Plug and Play.
- Operational system virtual serial port driver.
- Maximum RS-485 cable length : 1200 m
- Power: from the USB port
- Consumption: <200 mA.
- Isolation: Isolation voltage 3500VRMS 500VDC sequence
- USB port RS-232/422/485 bus protection: 600W.
- USB connection: USB -B female connector. 1m USB-A to USB-B cable.
- RS-232 connector:DB9 male
- RS-422/485 connector: 6-bit terminal socket
| Computer Interface | : USB V1.1/2.0 Plug and Play |
| Field Interfaces | : RS-232, RS-422, RS-485 (Half Duplex) |
| Support | : Windows 98/ME/XP/2000/CE‚ MAC & Linux |
| Field Interface | : Half duplex (Dual Buses) |
| Isolation | : Isolation Voltage 3500VRMS 500VDC sequence |
| Transmission rate | : 300BPS to 1MBPS |
| Signal Indication | : Sending data(red) and receiving data (green) LED |
| Supply | : From the USB port |
| Bus protection | : 600W |
| Working Environment | : 0°C~70°C‚ 10%~95%RH |
| Size | : 105 mm X 85 mm X 27 mm |
