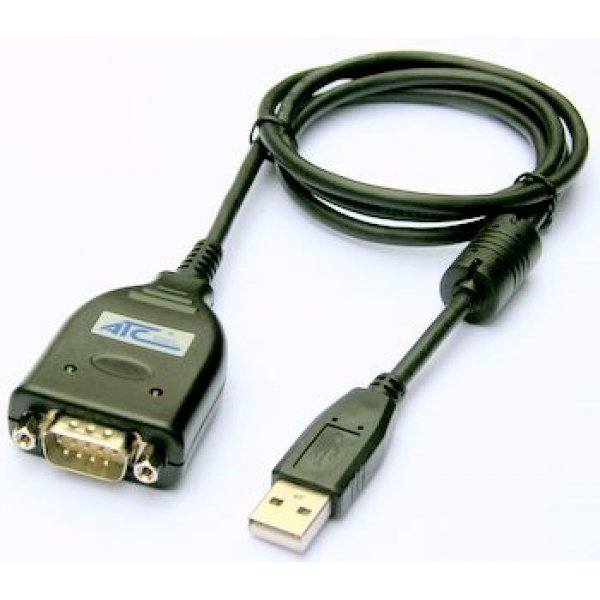

ATC-830 TTL to USB Converter

USB TO SERIAL CONVERTER ATC-830

USB to TTL Converter



  • Operational system virtual serial port driver.
  • Supports Windows 98/ME/XP/2000/CE, MAC & Linux 2.4.20 or superior.
  • Field Interfaces:TTL logic
  • Maximum TTL cable length : 15 m
  • USB connection: Mini-B connector.120mm cable with the module.
  • TTL logic connector: DB 9 Male type accepting

USB TO SERIAL CONVERTER ATC-830

USB to TTL Converter



  • Operational system virtual serial port driver.
  • Supports Windows 98/ME/XP/2000/CE, MAC & Linux 2.4.20 or superior.
  • Field Interfaces:TTL logic
  • Maximum TTL cable length : 15 m
  • USB connection: Mini-B connector.120mm cable with the module.
  • TTL logic connector: DB 9 Male type accepting

Computer interface

: USB V1.1 2.0 Plug and Play.

Transmission rate

: from 300 bps to 1Mbps.

Power

: from the USB port

Consumption

: <100 mA.

logic protection

: 600W.

ABS enclosure

: 55 x 35 x 15 mm(not include cable)

Operating environment

: 0 to 70°C, 10 to 90% relative humidity, non-condensing
