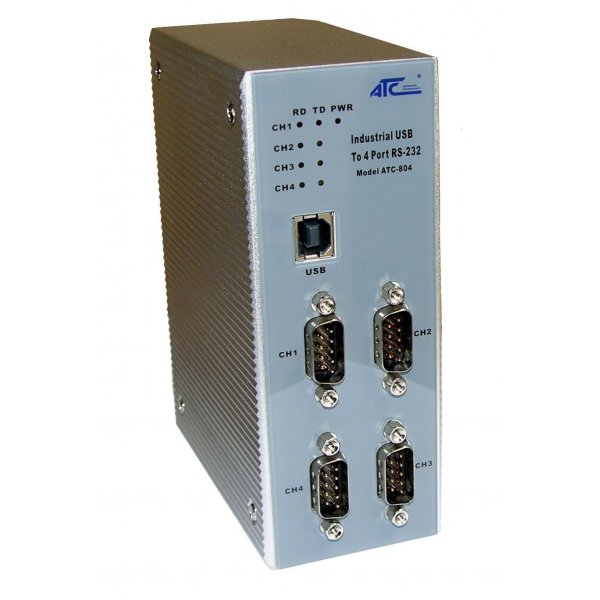

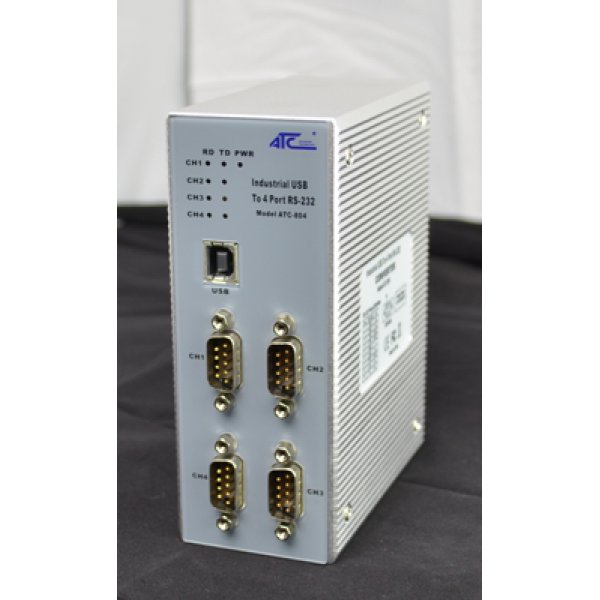

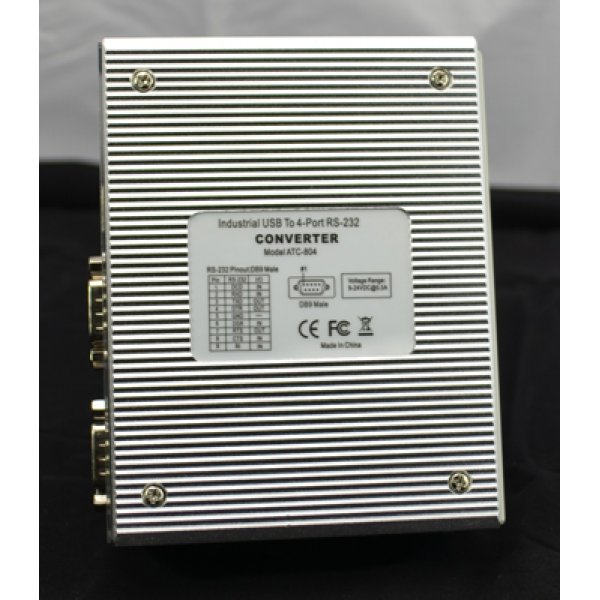

ATC-804 4 Port RS-232 to USB Converter
USB TO SERIAL CONVERTER ATC-804
- Operational system virtual serial port driver.
- Supports Windows 95/98/Me, 2000, 2003, XP, Vista,Win7, CE, Linux ,MAC
- Power: From the USB port or external power.
- RS-232 protection: +15KV ESD. 600W surge protection.

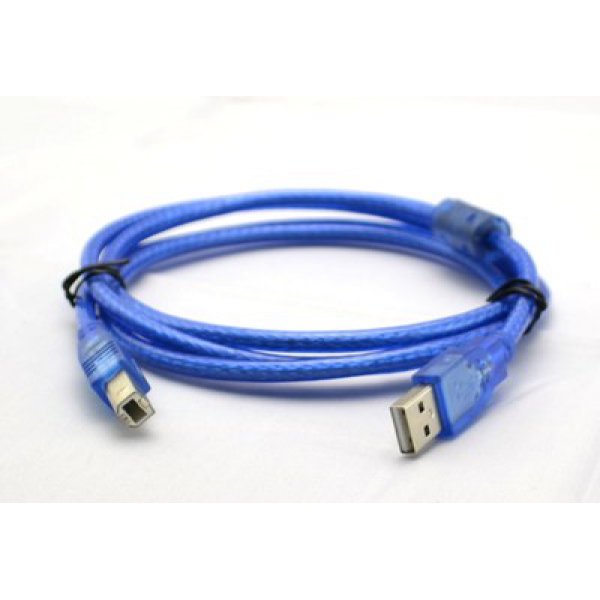

- USB connection: USB B Female connector.
- RS-232 connector: DB9 male.
- Aluminum enclosure dimensions 135 x54 x 108 mm
- Weight 0.8Kg with USB cable
USB TO SERIAL CONVERTER ATC-804
- Operational system virtual serial port driver.
- Supports Windows 95/98/Me, 2000, 2003, XP, Vista,Win7, CE, Linux ,MAC
- Power: From the USB port or external power.
- RS-232 protection: +15KV ESD. 600W surge protection.
- USB connection: USB B Female connector.
- RS-232 connector: DB9 male.
- Aluminum enclosure dimensions 135 x54 x 108 mm
- Weight 0.8Kg with USB cable
|
Computer Interface |
USB V1.1/2.0 Plug and Play |
|
Field Interface |
4 Port RS-232 |
|
Support |
Windows 98/ME/XP/2000/CE, MAC & Linux |
|
Transmission rate |
300BPS to 460.8 KBPS |
|
Supply |
From the USB port or external power |
|
RS-232 protection |
600W Surge Protection |
|
Working Environment |
0°C˜70°C, 10%˜95%RH |
|
Transmission rate |
from 300 bps to 460.8Kbps. |
|
Consumption |
<300 mA. |
|
Operating environment |
-40 to 70°C, 10 to 90%relative humidity, non-condensing |
