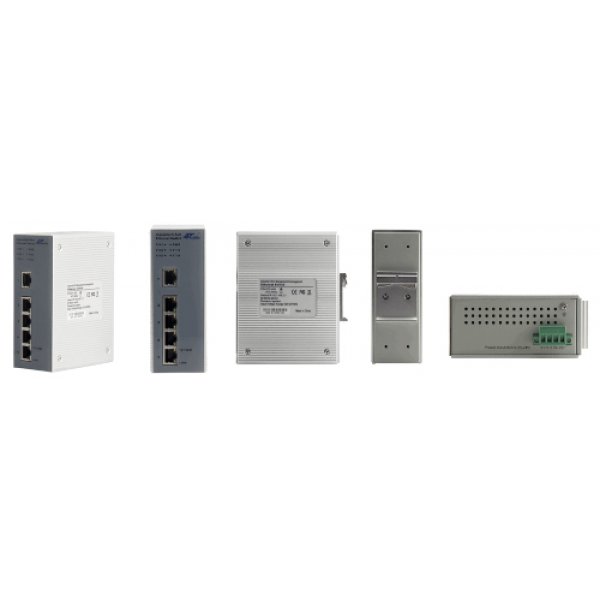

ATC 405U
5 PORT ETHERNET SWITCH : ATC-405U
- Each port can be configured to be 10Base-TX, 100Base-TX
- Up to 2K MAC address
- Support auto-polarity for 10Mbps
- Half/Full duplex traffic selection
- Broadcast storm protection
- Auto MDI-MDIX
- Layer2-4 Multi-Field classifier
- Class of Service-Port based, MAC address, VID,
- VLAN priority, IPv4 ToS, IPv6 DSCP,TCP/UDP
- Support policy-based QoS
- Support 4-level priority queues per port
- WRR/WFQ/SP
- Support hardware IGMP v1,v2 snooping
- Support Port mirror
- Support 16 VLAN (IEEE Std 802.1q)
- Support STP, RSTP and MSTP
- Support port-based access control
- Supports rate control
5 PORT ETHERNET SWITCH : ATC-405U
- Each port can be configured to be 10Base-TX, 100Base-TX
- Up to 2K MAC address
- Support auto-polarity for 10Mbps
- Half/Full duplex traffic selection
- Broadcast storm protection
- Auto MDI-MDIX
- Layer2-4 Multi-Field classifier
- Class of Service-Port based, MAC address, VID,
- VLAN priority, IPv4 ToS, IPv6 DSCP,TCP/UDP
- Support policy-based QoS
- Support 4-level priority queues per port
- WRR/WFQ/SP
- Support hardware IGMP v1,v2 snooping
- Support Port mirror
- Support 16 VLAN (IEEE Std 802.1q)
- Support STP, RSTP and MSTP
- Support port-based access control
- Supports rate control
Network Interface | |||
Interface | : Ethernet 10Base-T or 100Base-TX | ||
Connector | : RJ45 | ||
Protocol | : Port based, MAC address, VID, VLAN priority, IPv4 ToS, IPv6 DSCP,TCP/UDP a | ||
Indicators(LED) | |||
--10/100Base-TX Link, activity indicator -- 10/100M bps speed connection --Half/Full Duplex --Power indicator | |||
Technology | |||
Standards | : IEEE802.3, 802.3u, 802.3x, IEEE 802.1x, IEEE 802.1Q | ||
Address Table Size | : 2K MAC Addresses | ||
Performance | : 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDIX connection | ||
System Requirements | |||
--Ethernet Category 5 cable --Network card for each PC -- Microsoft Windows XP or Vista for running Configuration Utility | |||
Power | |||
Input Voltage | : 8-24 VDC@500mA | ||
Connector | : Removable Terminal Block | ||
Physical Specifications | |||
Dimensions | : 54 x 105 x 135 mm (2.1 x 4.1 x 5.3 in) | ||
Weight | : 0.8 kg (1.32lb) | ||
Installation | : DIN-Rail Mounting | ||
Operating temperature | : e -40° to 70° C |
