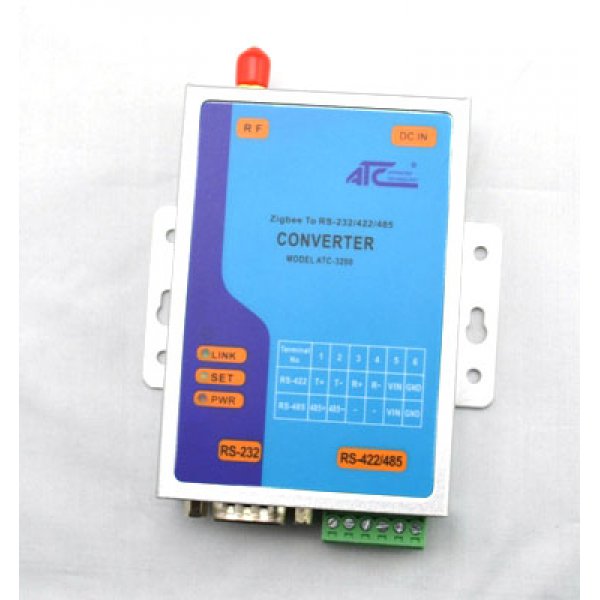

ATC-3200 RS-232 / RS-485 To Zigbee Wireless Converter
ATC-3200 Wireless To serial Converter
- Utilizes globally available 2.4 GHz ISM band
- Control and Configuration with UART commands.
- 65535 unique node addresses, IDs allow multiple large networks to coexist.
- Programmable Transmit Power Output, max. 12 dBm
- Complete IEEE 802.15.4 spec compliant
- Typical Receiver Sensitivity –102 dBm
- Typical Throughput rate 250,000 bps
- Obstructed signal range to 500 meters @ 12dBm/PA and -102dBm/LNA
- Multiple Low Power Operating modes
- 3-in-1 RS-232/422/485 interface Max.115.2Kbps Serial interface and zigbee
- Supports 4- and 2-wire RS-485 with AUTO-SEND™ and built-in terminator
- Supports industrial 24 VDC power input and optional Power over Serial
- Terminal block accessories for easy RS-422/485 serial wiring
- Easy and powerful configuration program
- Approval CE, RoHS
ATC-3200 Wireless To serial Converter
- Utilizes globally available 2.4 GHz ISM band
- Control and Configuration with UART commands.
- 65535 unique node addresses, IDs allow multiple large networks to coexist.
- Programmable Transmit Power Output, max. 12 dBm
- Complete IEEE 802.15.4 spec compliant
- Typical Receiver Sensitivity –102 dBm
- Typical Throughput rate 250,000 bps
- Obstructed signal range to 500 meters @ 12dBm/PA and -102dBm/LNA
- Multiple Low Power Operating modes
- 3-in-1 RS-232/422/485 interface Max.115.2Kbps Serial interface and zigbee
- Supports 4- and 2-wire RS-485 with AUTO-SEND™ and built-in terminator
- Supports industrial 24 VDC power input and optional Power over Serial
- Terminal block accessories for easy RS-422/485 serial wiring
- Easy and powerful configuration program
- Approval CE, RoHS
| Interface | : Rs-232/RS485/RS422 |
| Transmission Power | : <100 Mw (ATC-863 & ATC-871)< 500 MW (ATC-873) |
| Carrier Frequency | : 2.4 GHz ISM Band (Complete IEEE 802.15.4 spec compliant) |
| Interface Speed Rate | : Maximum up to 115.2 KBPS |
| Transmission Distance | : 500 mtr. @ 12 dbm/PA & - 102 dbm/LNA |
| Support | : Windows 98/ME/XP/2000/CE, MAC & Linux |
| Signal Indication | : TXD, RXD, PWR |
| Supply | : 9˜12 VDC |
| Working Environment | : -20°C˜65°C, 10%˜90%RH |
