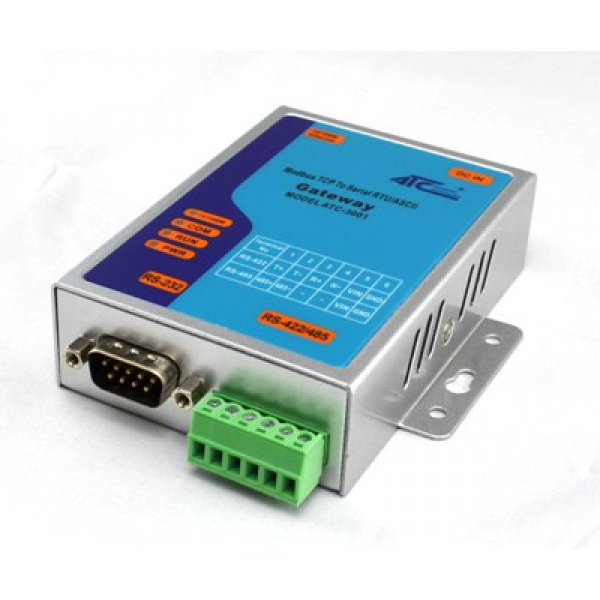

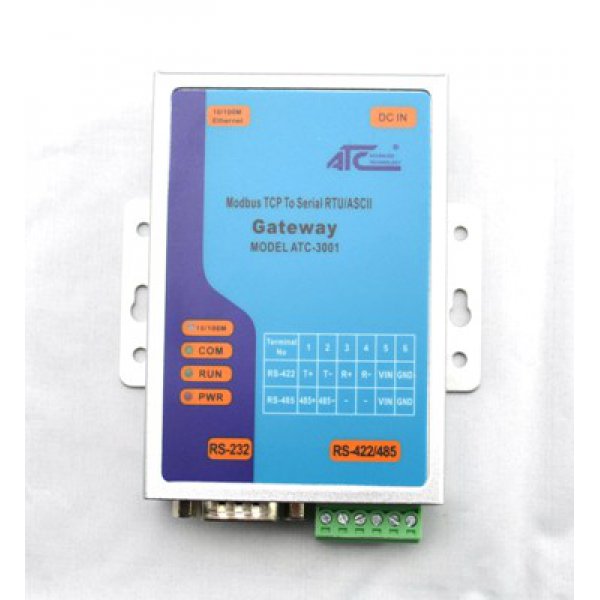

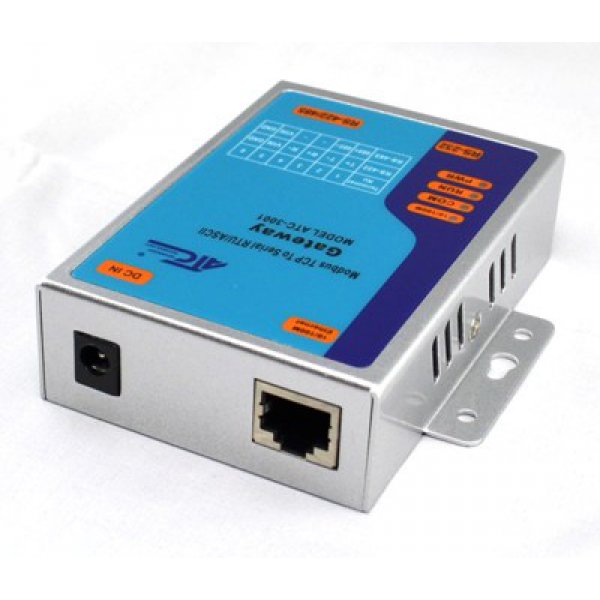

ATC-3001 MODBUS TCP / IP to MODBUS Serial RS-232 / RS-485 / RS-232 Converter
4-Port RS232/RS422/RS485 to TCP/IP Connverter
- ATC-3001 Modbus Gateway / Modbus to TCP-IP Converter
- Designed for Industrial Equipment
- Ease-of-use in MODBUS protocol conversion include RTU
- ASCII and TCP, Support Driver
- TCP Server/Client, UDP Server/Client, Pair connection operation mode
4-Port RS232/RS422/RS485 to TCP/IP Connverter
- ATC-3001 Modbus Gateway / Modbus to TCP-IP Converter
- Designed for Industrial Equipment
- Ease-of-use in MODBUS protocol conversion include RTU
- ASCII and TCP, Support Driver
- TCP Server/Client, UDP Server/Client, Pair connection operation mode
| Computer Interface | : 3-in-1 RS-232/422/485 interface Max.230Kbps Serial interface and 10/100 Mbps Ethernet(Auto sensing) |
| Supports | : Windows 8/7/98/ME/XP/2000/CE‚ MAC & Linux with 4 and 2 wire RS-485 with AUTO-SEND™ and built-in terminator |
| Data Rates | : 1200 bps to 230,400 bps |
| Configuration | : Web Page / Telnet / Serial console / Windows utility |
| Signal Indication | : 10/100Base-TX Link , Date Sending / Receiving between Serial and the Ethernet PWR(Power Indication) |
| Software & Hardware | : Xon / Xoff and RTS/CTS |
| CPU | : 16-bit x86 Embedded CPU |
| Memory | : 512 Kbytes Flash, 512Kbytes SDRAM, 512Kbytes EEPROM |
| Input Voltage | : 8-24 VDC@500mA |
| Dimension | : 95 x 65 x 25 mm – Din Rail Mounting |
