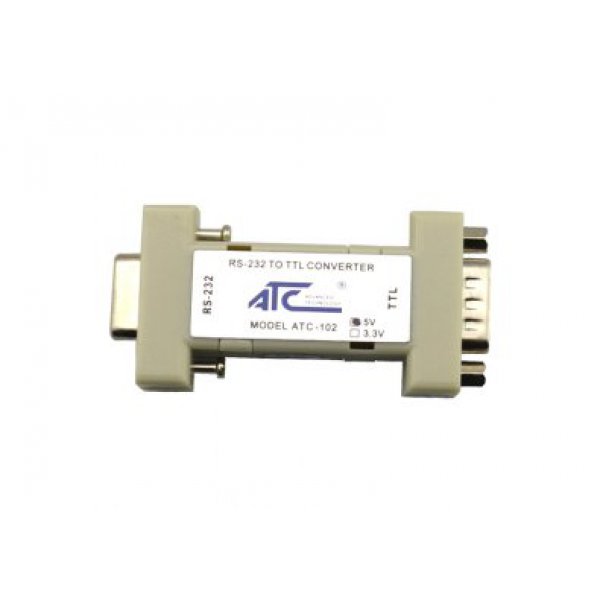

ATC-102

Features :

  • DB9-S/P space saving connector
  • RS-232C data interface fully compatible with PC
  • DB9 connector and terminal are optional to TTL interface
  • Automatic direction control of transmitting data (TXD), zero-latency design
  • Working mode: Asynchronous communication
  • High efficiency serial port electricity stealing technology, need no external power supply, real three line (TD, RD, GND) mode communication
  • Communication speed : 0-115.2kbps
  • Transmission distance : 0-10 meter@24VAWG

Features :

  • DB9-S/P space saving connector
  • RS-232C data interface fully compatible with PC
  • DB9 connector and terminal are optional to TTL interface
  • Automatic direction control of transmitting data (TXD), zero-latency design
  • Working mode: Asynchronous communication
  • High efficiency serial port electricity stealing technology, need no external power supply, real three line (TD, RD, GND) mode communication
  • Communication speed : 0-115.2kbps
  • Transmission distance : 0-10 meter@24VAWG

  • Communication Parameters :

          Interface : Compatible with the EIA/TIA RS-232-C and TTL/CMOS standard
          RS-232 : TD, RD, GND
          Working Mode : Point to point or point to multipoint, asynchronous communication
          Direction Control : Automatic Send Data Line Control, automatic identification and control data transmission direction
          Baud Rate : 300-115.2kbps，automatic detection rate of serial port signals
          Transmission Distance : TTL side 10 meters (19.2 kbps)
          Connector : RS-232 - DB-9 male

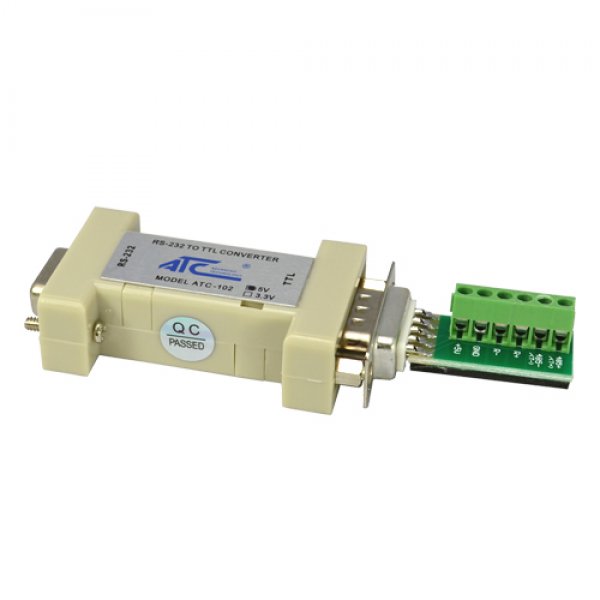

                            TTL - DB9 male or 6-pin Terminal block



  • Power Supply Parameters :

          Power Supply : Without external power supply. Equipment from RS-232 port TXD, RTS, DTR signal for power supply.
          Power Consumption : Static power consumption within 10 mA, dynamic average power consumption of 40 mA



  •  Physical Characteristics :

           Housing : Plastic shell
           Weight : 0.45Kg
           Dimensions : 88mmx33mmx17mm



  • Environmental Limits :

         Operating Temperature : -20 ~ 70°C (-4 ~ 158°F)
         Storage Temperature : -40 ~ 85°C (-40 ~ 176°F)
         Ambient Relative Humidity : 5% to 95%(non-condensing)
         Standards and Certifications : RoHS, CE, FCC
