ATC-1000 Low Cost Ethernet to RS-232 / RS-485 / RS-232 Converter

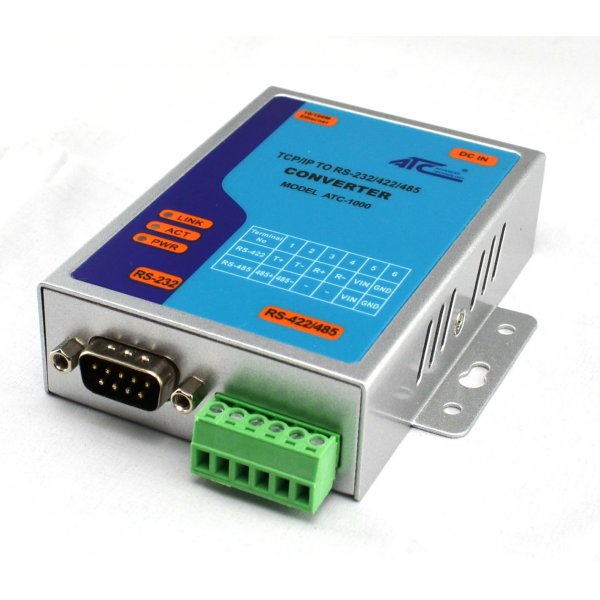

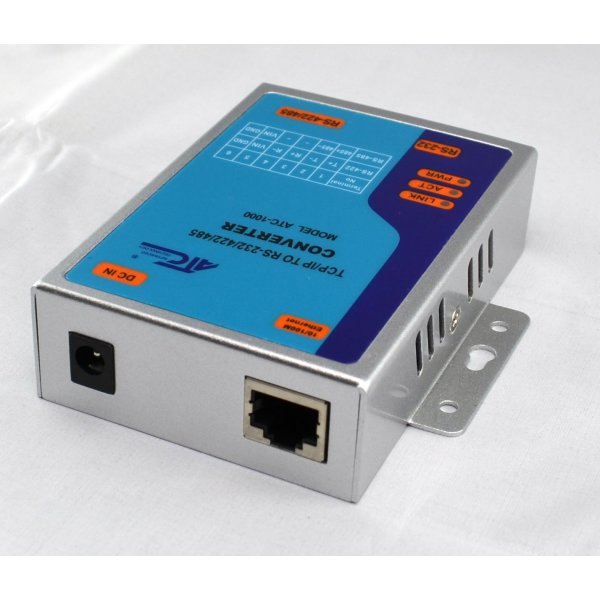

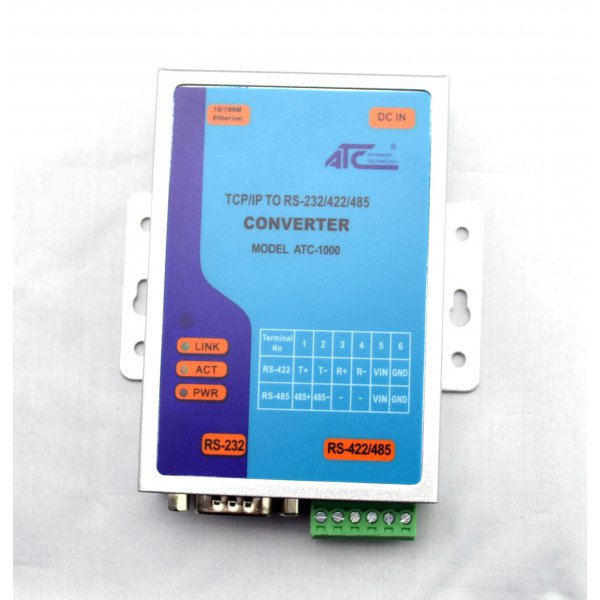

Serial To TCP/IP Ethernet Converter ATC-1000





  • 3-in-1 RS-232/422/485 interface Max.230Kbps Serial interface and 10/100 Mbps Ethernet
  • Supports 4- and 2-wire RS-485 with AUTO-SEND™ and built-in terminator
  • Supports industrial 24 VDC power input and optional Power over Serial
  • Terminal block accessories for easy RS-422/485 serial wiring Supports IP configuration by MAC address.
  • Supports configuration store and copy for easy deployment
  • Supports Driver, TCP Server/Client, UDP Server/Client, Pair Connection operation modes
  • Easy and powerful configuration program
  • Approval CE, RoHS





Serial To TCP/IP Ethernet Converter ATC-1000





  • 3-in-1 RS-232/422/485 interface Max.230Kbps Serial interface and 10/100 Mbps Ethernet
  • Supports 4- and 2-wire RS-485 with AUTO-SEND™ and built-in terminator
  • Supports industrial 24 VDC power input and optional Power over Serial
  • Terminal block accessories for easy RS-422/485 serial wiring Supports IP configuration by MAC address.
  • Supports configuration store and copy for easy deployment
  • Supports Driver, TCP Server/Client, UDP Server/Client, Pair Connection operation modes
  • Easy and powerful configuration program
  • Approval CE, RoHS





Computer Interface

: 3 in 1 RS-232/RS-422/RS-485 interface

Support

: Windows 98/ME/XP/2000/ CE, MAC & Linux

Transmission rate

: 230KBPS serial interface and 10/100 MBPS

Signal Indication

: Link (Indicate Ethernet link),PWR (Power Indication)
ACT(Sending / Receiving data serial to Ethernet),

Supply

: 9˜24VDC

Working Env.

: 0°C˜70°C, 10%˜95%RH
