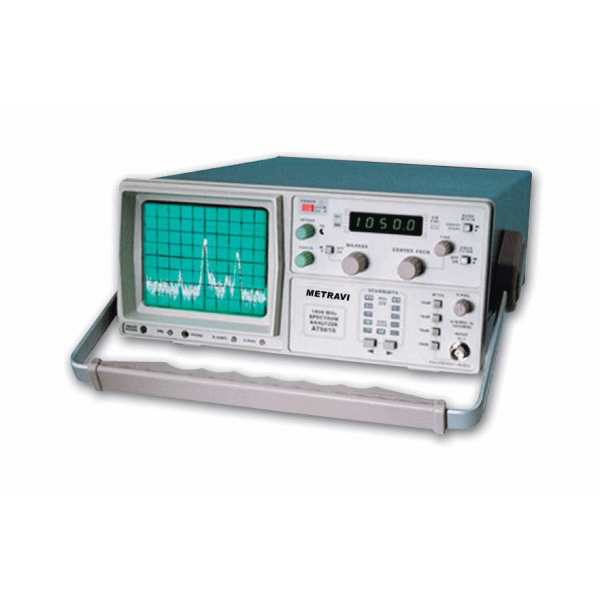

AT-5010
- Frequency range : 0.15--- 1050 MHz
- Center frequency display accuracy : ±100kHz
- Marker accuracy : (0.1% span +100kHz)
- Resolution of frequency display : 100kHz(4.5 digit LED)
- Frequency scanwidth : 100 kHz/div. to 100MHz/div. in 1-2-5 steps and 0Hz/div.(Zero Scan)
- Frequency scanwidth accuracy : ±10%
- Frequency stability : better than 150 kHz/ hour
- IF Bandwidth (-3dB) :
- Resolution : 400 kHz and 20 kHz;
- Video-Filter on : 4 kHz
- Sweep rate : 43Hz
- Amplitude range : -100dBm to +13 dBm
- Screen display range : 80 dB (10dB/div.)
- Reference level : -27dBm to +13 dBm (in 10dB steps)
- Reference level accuracy : ±2dB
- Average noise level : -99dBm (20 kHz BW)
- Distortion : < -75 dBc: 2nd and 3rd harmonic
- 3rd order intermod. : -70dBc (two signals > 3MHz apart)
- Sensitivity :
- Log scale fidelity : ±2dB (without attn.) Ref.: 250MHz
- Input impedance : 50Ohms
- Input connector : BNC
- Input attenuator : 0 to 40 dB (4Å~10dB steps)
- Input attenuator accuracy : 1dB/10 step
- Max. input level : +10dBm, ±25V DC (0dB attenuation) / +20dBm, (40dB attenuation)
