J0- 1 Three-wire RTD input or 1 thermocouple + 1 two-wire RTD Input
J1- 2 Thermocouple inputs
J2- 2 two wire RTD inputs
J3- 2 Voltage Inputs
J4- 2 Current inputs
J5- 2 two-wire transmitter inputs(Includes 24VDV power supply)
I2- Frequency/ external On-Off signal input (providing 12V power from instrument's internal isolated 24VDC power supply)
I3- 1 0-5V / 1-5V Voltage input interface (providing 24V power from instrument's internal isolated 24VDC power supply)
I4- 1 0-2mA / 4-20mA current input interface (providing 24V power from instrument's internal isolated 24VDC power supply)

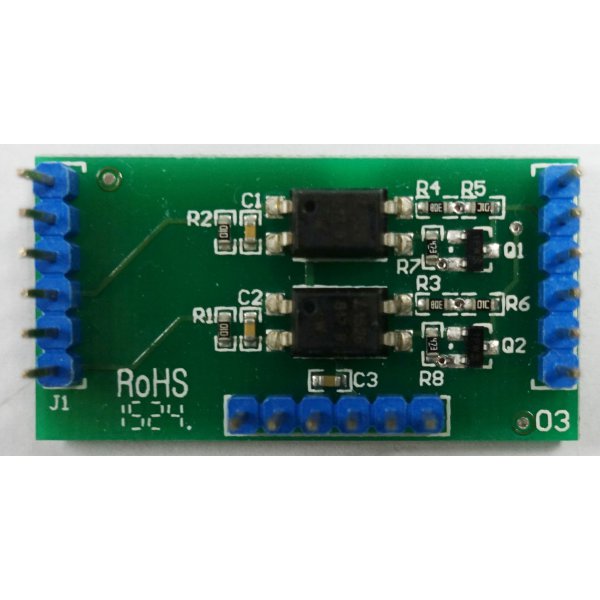

I5- 2 on-off signal input (source- sink input)
I7- AC current input, mesurement range 0-5A AC
I8- AC voltage input, Measurement range 0-500V AC
