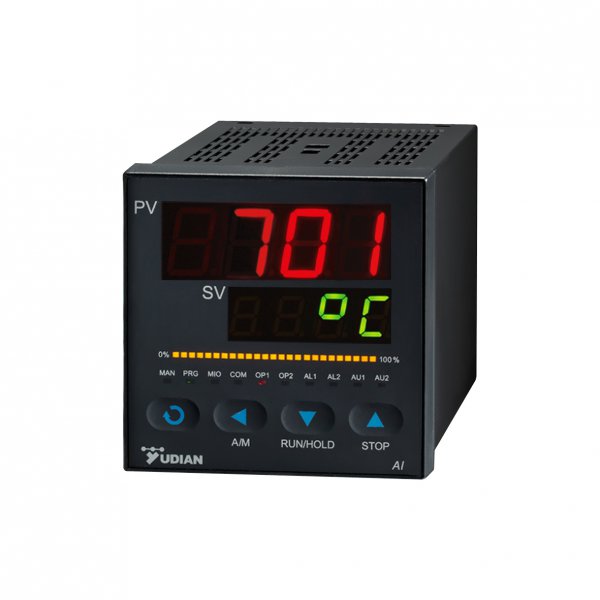

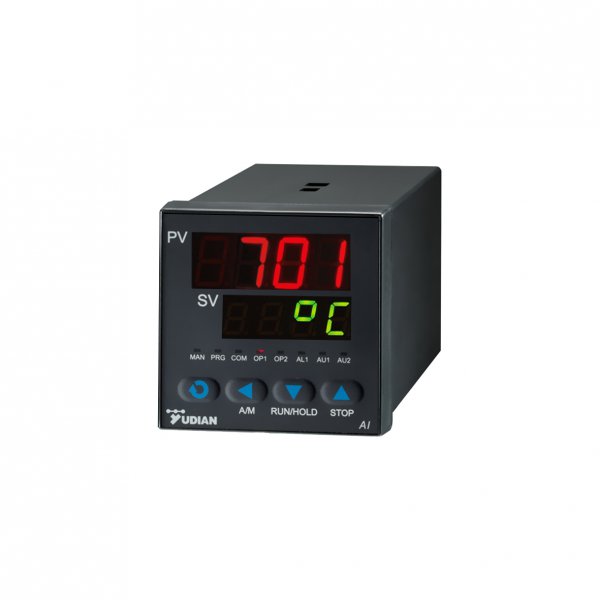

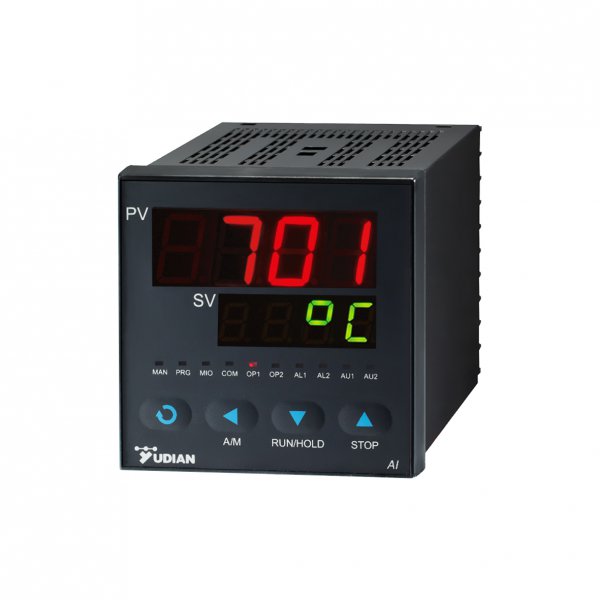

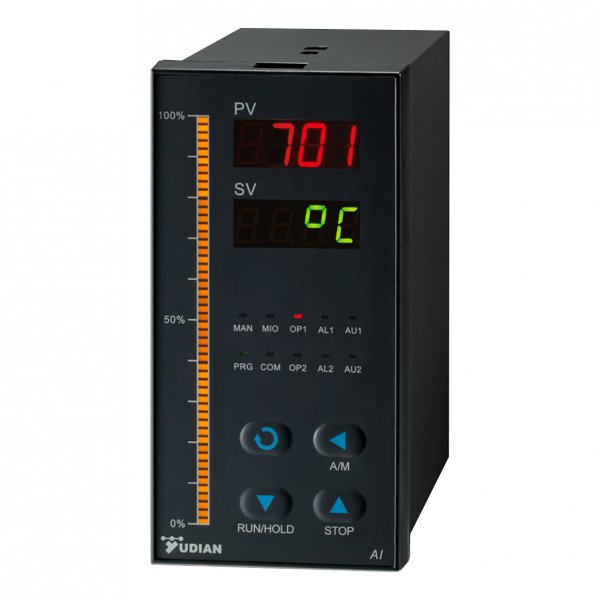

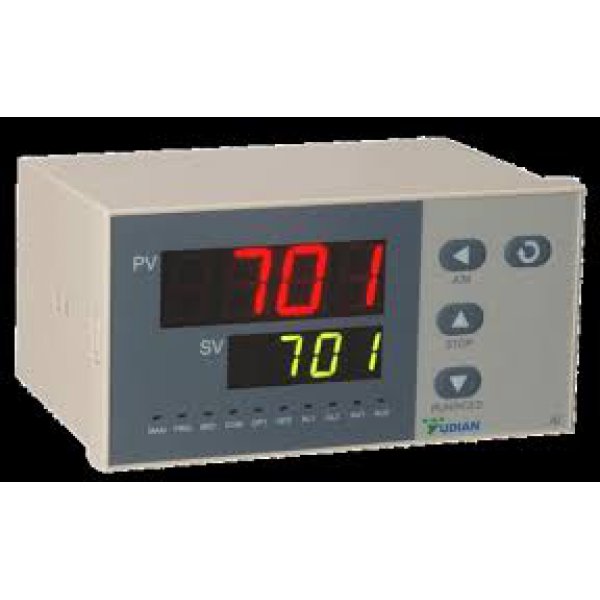

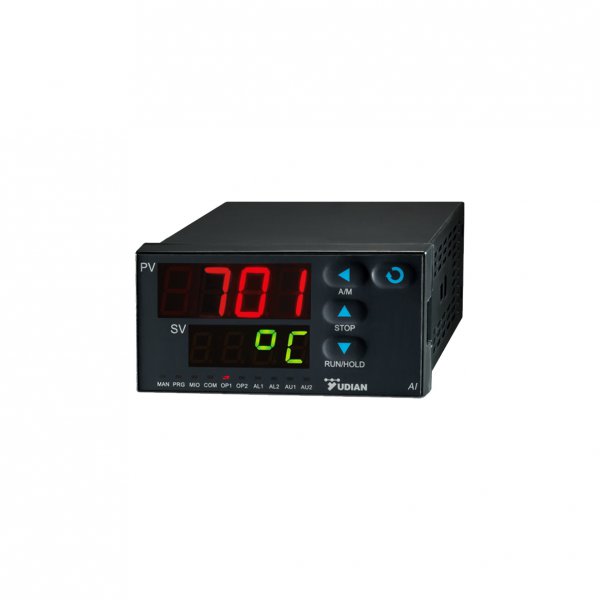

Single Channel Indicator AI-701
Accuracy: 0.2%FS +/-1,Sampling Time 250ms
Input: Thermocouple:K,S,R,E,B,J,N,T,Cu50,
Pt100, Analog signal
Retransmission : Analog signal
Supply Power: 100-240VAC (50~60Hz) or 24VDC
|
Inputs |
: Universal All type of Thermocouple and PT100‚(RTD)‚ Linear Voltage,Linear Current‚ mV‚ 2wireTransmitter input |
|
Alarm |
: High‚ Low‚ second high and second low (Selectable) |
|
Pressure Input |
: 0-5V DC OR 1-5V DC, 4-20mA Pres. (Compensation with AI- 808H) |
|
Re Transmission Output |
: Linear current or voltage |
|
Power Supply |
: SMPS 100~240VAC/DC‚ 50 Hz |
|
Accuracy |
: 0.2%FS± 1 Unit |
|
Panel Cutout Size |
: 96×96mm, 72×72mm, 48×48mm, 48×96mm, 96×48mm, E5 Din Rail Mounting |
