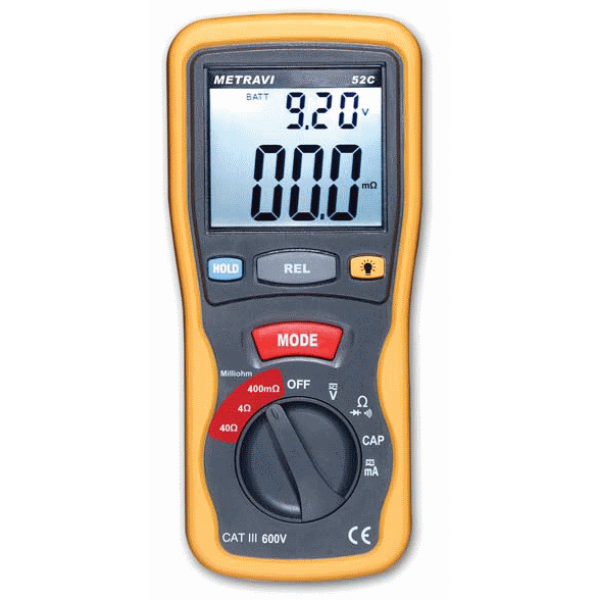

52C
- Low resistance range: 0~40Ω
- Display: 3-3/4 Digits Large LCD with bar graph display
- Maximum output current : 200mA (400mΩ)
- Relative measurement
- Auto Power Off
- Low Battery and Over Range Indication
- 4Terminal Measurement with kelvin clip probes
- Overload Protection on all ranges
- Max / Min Recording
- Confirms to CAT-III 600V
- Low Resistance: 0 – 400m / 4 / 40 Ω
- Accuracy: ± 1%
- DC Voltage: 0 – 400m / 4 / 40 / 400 / 1000V
- Accuracy: ± 1%
- AC Voltage: 0 – 400m / 4 / 40 / 400 / 750V
- Accuracy: ± 1%
- DC Current: 0 – 400u / 4000u / 40m / 400mA
- Accuracy: ± 1.5%
- AC Current: 0 – 400u / 4000u / 40m / 400mA
- Accuracy: ± 1.5%
- Capacitance: 0 – 4n / 40n / 400n / 4u / 40u / 400u / 4m / 40mF
- Accuracy: ± 3.0%
- Resistance: 0 – 400 / 4k / 40k / 400k / 4M / 40M.Ohms
- Accuracy: ± 1.0%
- Low resistance range: 0~40Ω
- Display: 3-3/4 Digits Large LCD with bar graph display
- Maximum output current : 200mA (400mΩ)
- Relative measurement
- Auto Power Off
- Low Battery and Over Range Indication
- 4Terminal Measurement with kelvin clip probes
- Overload Protection on all ranges
- Max / Min Recording
- Confirms to CAT-III 600V
- Low Resistance: 0 – 400m / 4 / 40 Ω
- Accuracy: ± 1%
- DC Voltage: 0 – 400m / 4 / 40 / 400 / 1000V
- Accuracy: ± 1%
- AC Voltage: 0 – 400m / 4 / 40 / 400 / 750V
- Accuracy: ± 1%
- DC Current: 0 – 400u / 4000u / 40m / 400mA
- Accuracy: ± 1.5%
- AC Current: 0 – 400u / 4000u / 40m / 400mA
- Accuracy: ± 1.5%
- Capacitance: 0 – 4n / 40n / 400n / 4u / 40u / 400u / 4m / 40mF
- Accuracy: ± 3.0%
- Resistance: 0 – 400 / 4k / 40k / 400k / 4M / 40M.Ohms
- Accuracy: ± 1.0%
