25

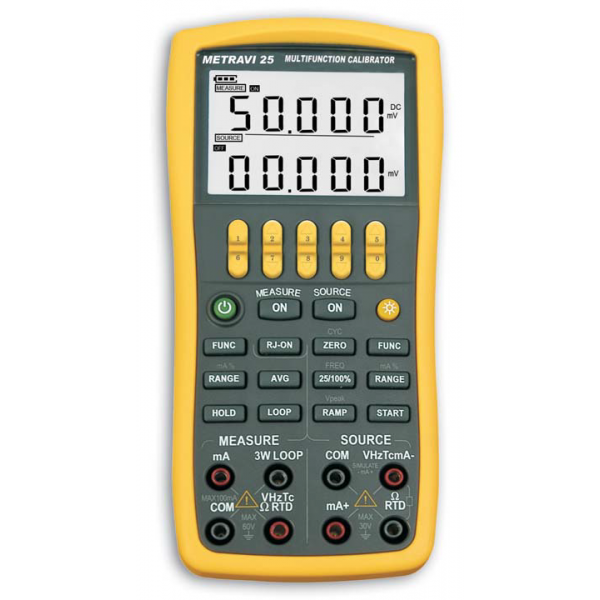

- Universal Calibrator for DC Voltage, Current, Resistance, Frequency all Thermocouples and Thermo-Resistance and for Pressure
- Measures and Sources can be done at the same time
- Confirms to IEC 61010
- Display : 50000 Counts Dual, Backlit Display
- Data Hold Function to freeze the displayed data
- DC Voltage : 0 – 50mV/500mV/5V/50V
- Accuracy : ±0.02%
- DC Current : 0 – 50mA
- Accuracy : ±0.02%
- Resistance : 0 - 500Ω / 5KΩ
- Accuracy : ±0.02%
- Frequency : 0 – 500Hz / 5KHz / 50KHz
- Accuracy : ± 2 digits
- R Type Thermocouple : 0°C to 1767°C
- Accuracy : ±1.5°C
- S Type Thermocouple : 0°C to 1767°C
- Accuracy : ±1.5°C
- K Type Thermocouple : -100.0°C to 1372.0°C
- Accuracy : ±0.8°C
- E Type Thermocouple : -50.0°C to 1000.0°C
- Accuracy : ±0.9°C
- J Type Thermocouple : -60.0°C to 1200.0°C
- Accuracy : ±0.7°C
- T Type Thermocouple : -100.0°C to 400.0°C
- Accuracy : ±0.7°C
- N Type Thermocouple : -200.0°C to 1300.0°C
- Accuracy : ±0.9°C
- B Type Thermocouple : 600.0°C to 1820.0°C
- Accuracy : ±1.4°C
- PT 100 – 385 : -200.0°C to 800.0°C
- Accuracy : ±0.5°C
- PT 1000-385 : -200.0°C to 630.0°C
- Accuracy : ±0.3°C
- PT 200-385 : -200.0°C to 630.0°C
- Accuracy : ±0.8°C
- PT 500-385 : -200.0°C to 630.0°C
- Accuracy : ±0.4°C
- Cu10 Sensor : -100.0°C to 260.0°C
- Accuracy : ±1.8°C
- Cu50 sensor : -50.0°C to 150.0°C
- Accuracy : ±0.7°C
- DC Voltage : 0 – 100m/1V/10V
- Accuracy : ±0.02%
- DC Current : 0 – 20mA
- Accuracy : ±0.02%
- Resistance : 0 – 400Ω/ 4KΩ / 40KΩ
- Accuracy : ±0.02%
- Frequency : 0 – 100Hz/1KHz/10KHz/100KHz
- Accuracy : ± 2 counts
- Pulse : 0 – 100 / 1K / 10khZ
- Accuracy : ± 2 counts
- Loop Power : 0 – 24V
- Accuracy : ±10%
- Switch : 0 – 100/1K/10K/100kHz
- Accuracy : ±2%
- R Type thermocouple : 0°C to 1767°C
- Accuracy : ±1.2°C
- S Type thermocouple : 0°C to 1767°C
- Accuracy : ±1.2°C
- K Type thermocouple : -200.0°C to 1372.0°C
- Accuracy : ±0.5°C
- E Type thermocouple : -200.0°C to 1000.0°C
- Accuracy : ±0.4°C
- J Type thermocouple : -200.0°C to 1200°C
- Accuracy : ±0.5°C
- T Type thermocouple : -250. 0°C to 400°C
- Accuracy : ±0.6°C
- N Type thermocouple : -200.0°C to 1300°C
- Accuracy : ±0.7°C
- R Type thermocouple : 600.0°C to 1820°C
- Accuracy : ±1.1°C
- PT100-385 : -200.0°C to 800°C
- Accuracy : ±0.3°C
- PT200-385 : -200.0°C to 630°C
- Accuracy : ±0.22°C
- PT500-385 : -200.0°C to 630°C
- Accuracy : ±0.22°C
- PT1000-385 : -200.0°C to 630°C
- Accuracy : ±0.22°C
- Cu10 : -100.0°C to 260°C
- Accuracy : ±2°C
- Cu50 : -50°C to 150°C
- Accuracy : ±0.6°C
- PRESSURE : Determined by pressure module
